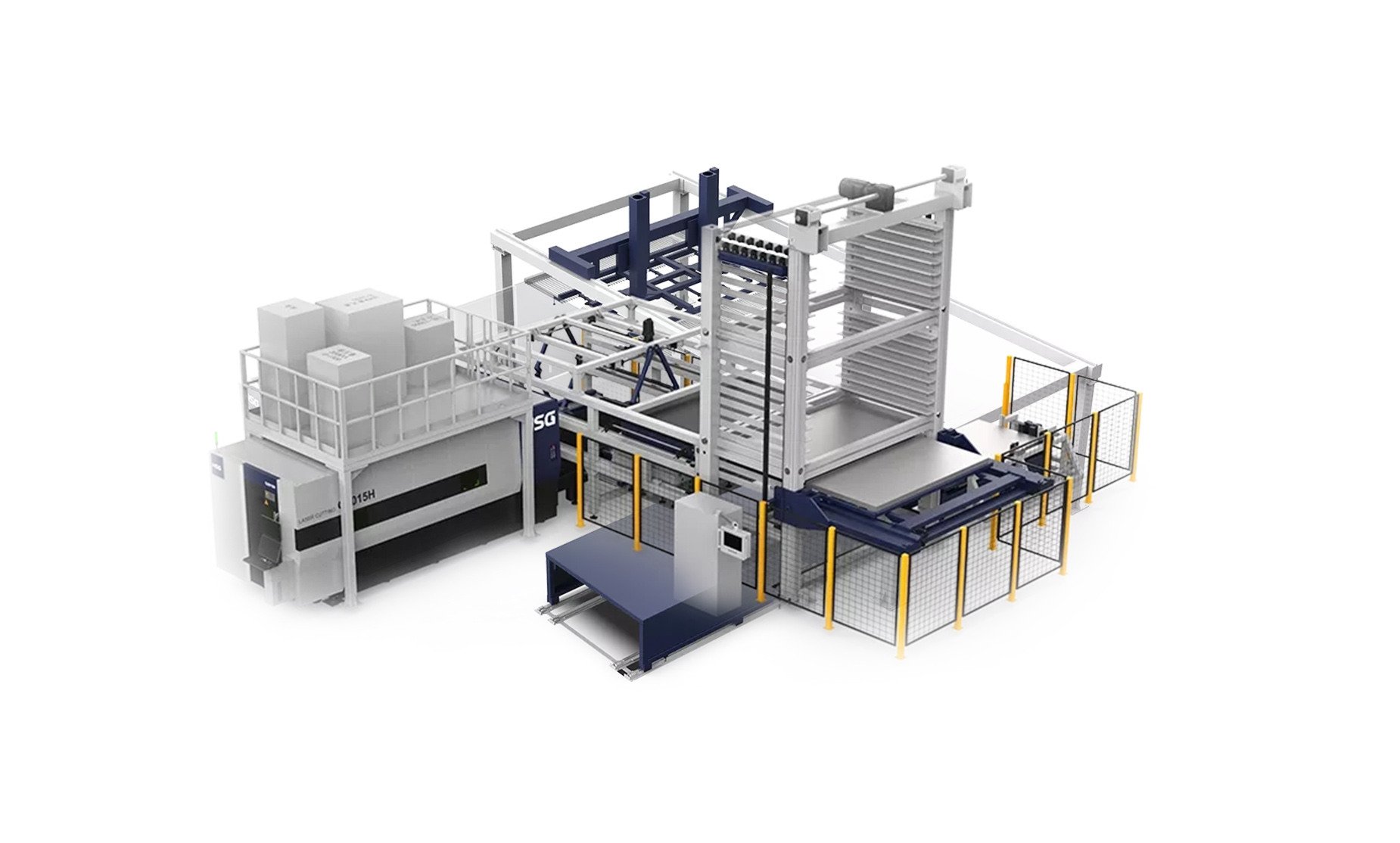

Store Pro

Premium Intelligent Laser Automatic System

storepro

Your Challenge – Our Concern

•  Hard to find labor, especially for the second or third shift.
•  Limited plant height
•  Low machine utilization and output per day
•  Difficult to manage materials and finished goods
•  Limited budget
The solution is designed to help you solve those bottlenecks for the highest output. With the STORE Pro, novices and advanced users alike benefit from an affordable and user-friendly automatic solution.

2
3

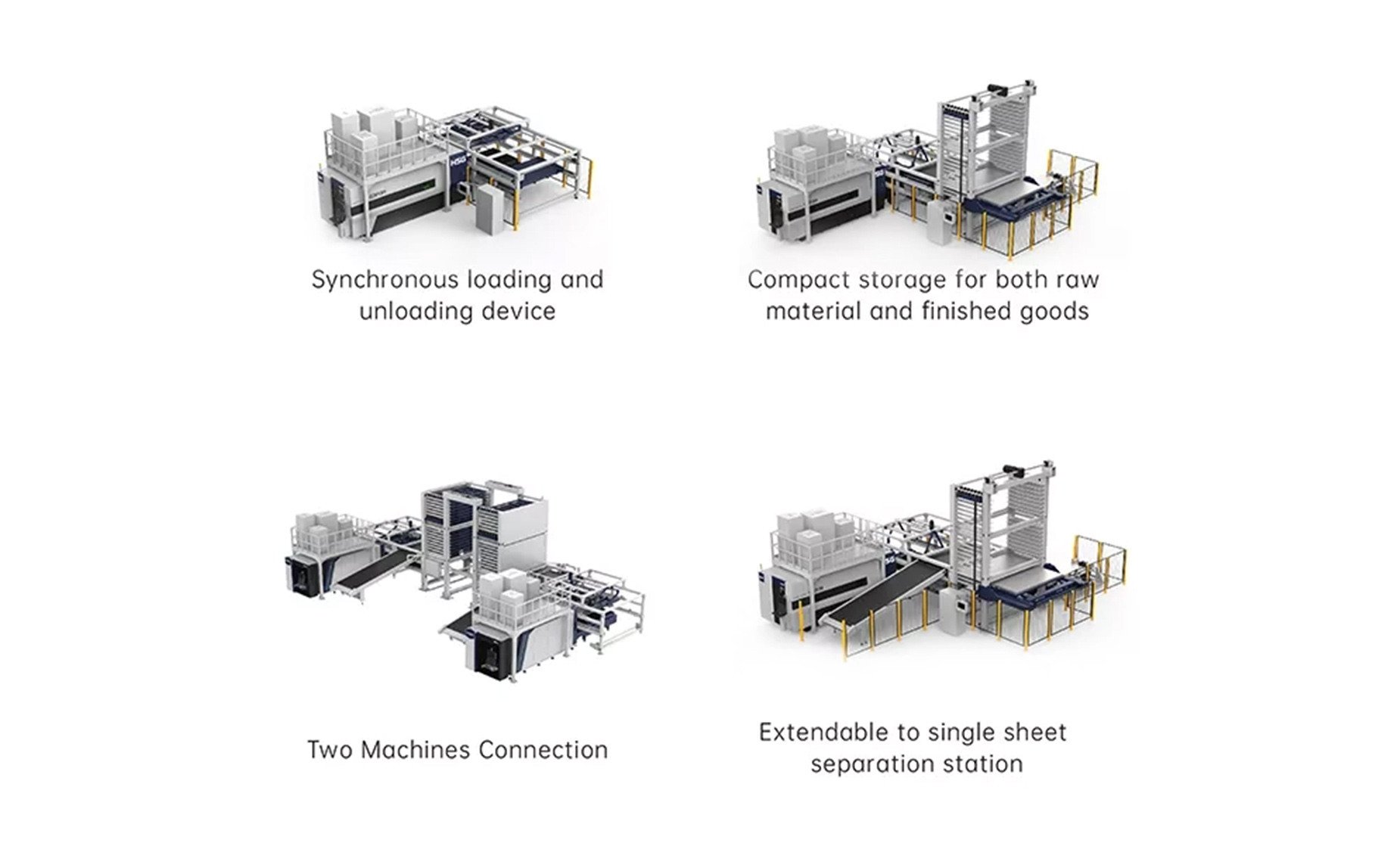

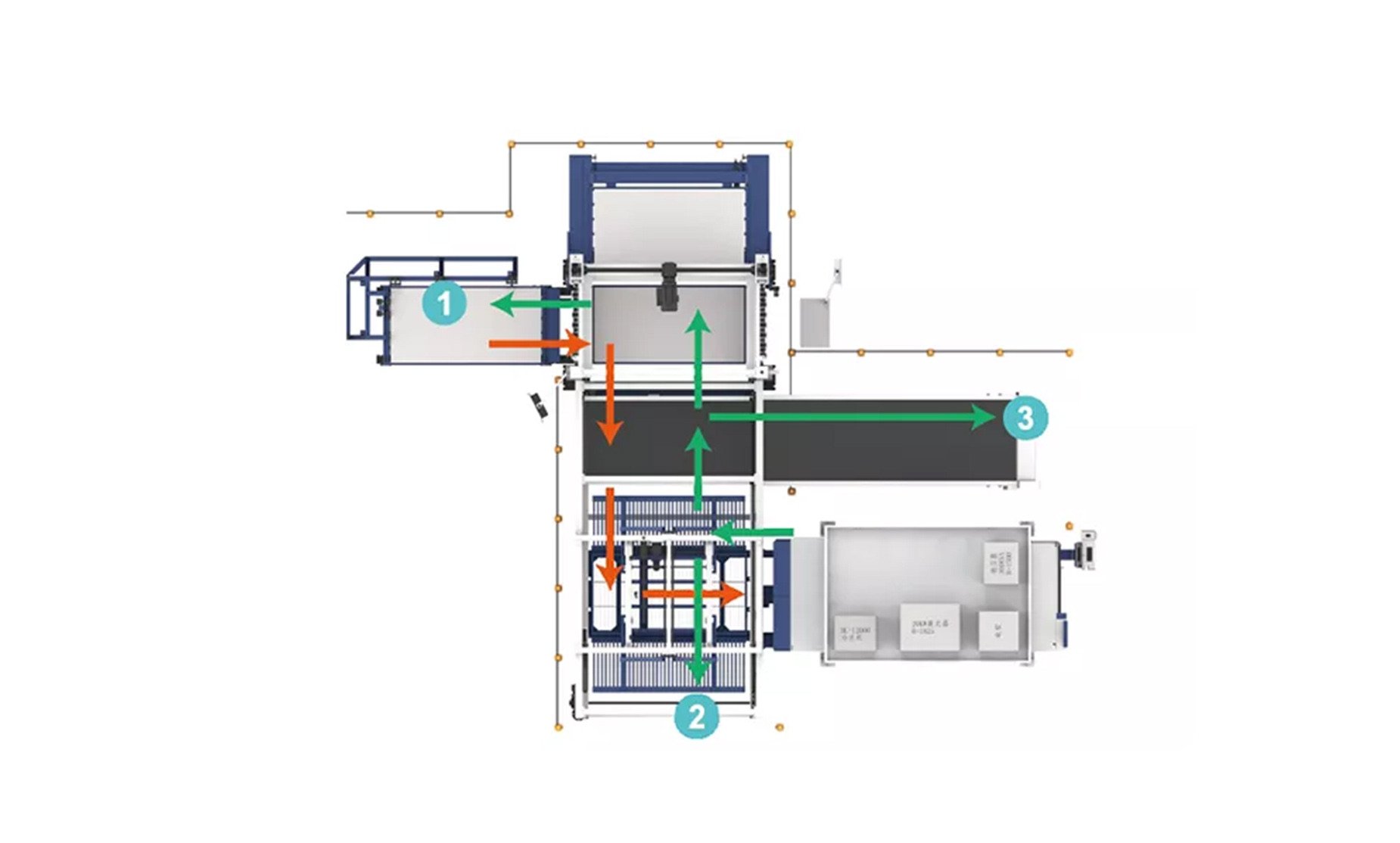

Flexible For Different Production Strategies

Flow 1: finished goods back to tower esp. in 2. or 3. shift, sorting in day shift
Flow 2: sorting per pallet
Flow 3: sorting per sheet (optional)

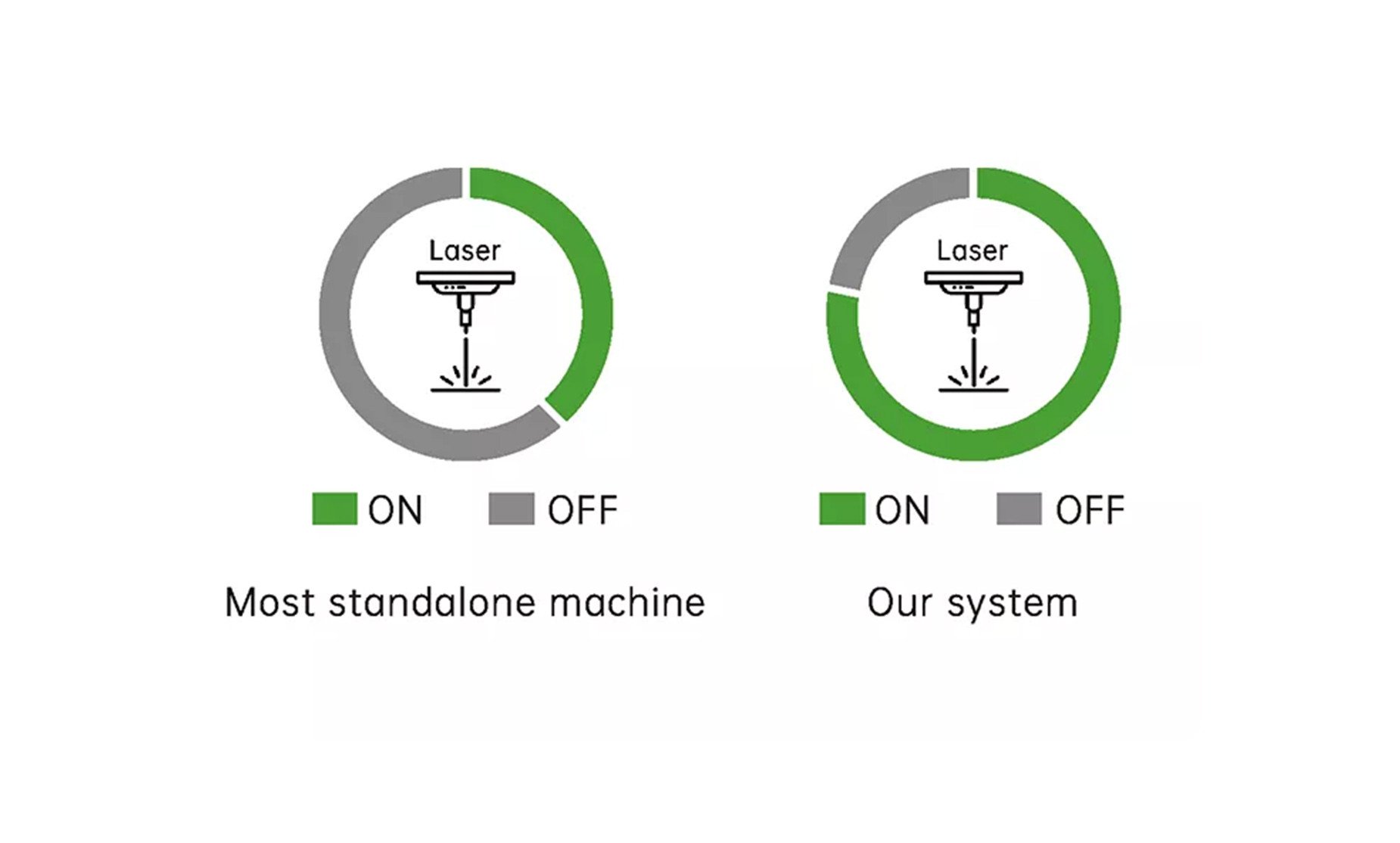

Optimized Machine Utilization Boost Your Output

Automation reduces waiting time for material handling by logistic staff, while our system makes the loading and unloading time even shorter by using synchronous processes. Your machine could be fully utilized, which enables you maximize your hourly output and save your money on another machine, additional space and operators.

4
5

70%+ Improved Space

Max. 10 positions per tower with a height of 4.4m.

Save Your Cost in Each Step

Our system could grow together with your business. The modular design enables a cost-effective extension of the automation system.

6

HSG Store Pro Technical Specifications


Model Store Pro 3015 Store Pro 4020
Max./Min. Loading Sheet Size
10' x 5' / 3.28' x 3.28'
13.3' x 6.6' / 3.28' x 3.28'
Max. Sheet Weight
 1322 lbs 2645 lbs
Tower Height (standard)
14.4', modular extension optional
 14.4', modular extension optional
Max. Stacking Height Per Pallet
 3.54'' / 12.2'' 3.54'' / 12.2''
Max. Loading Weight Per Pallet
 6613 lbs 11023 lbs

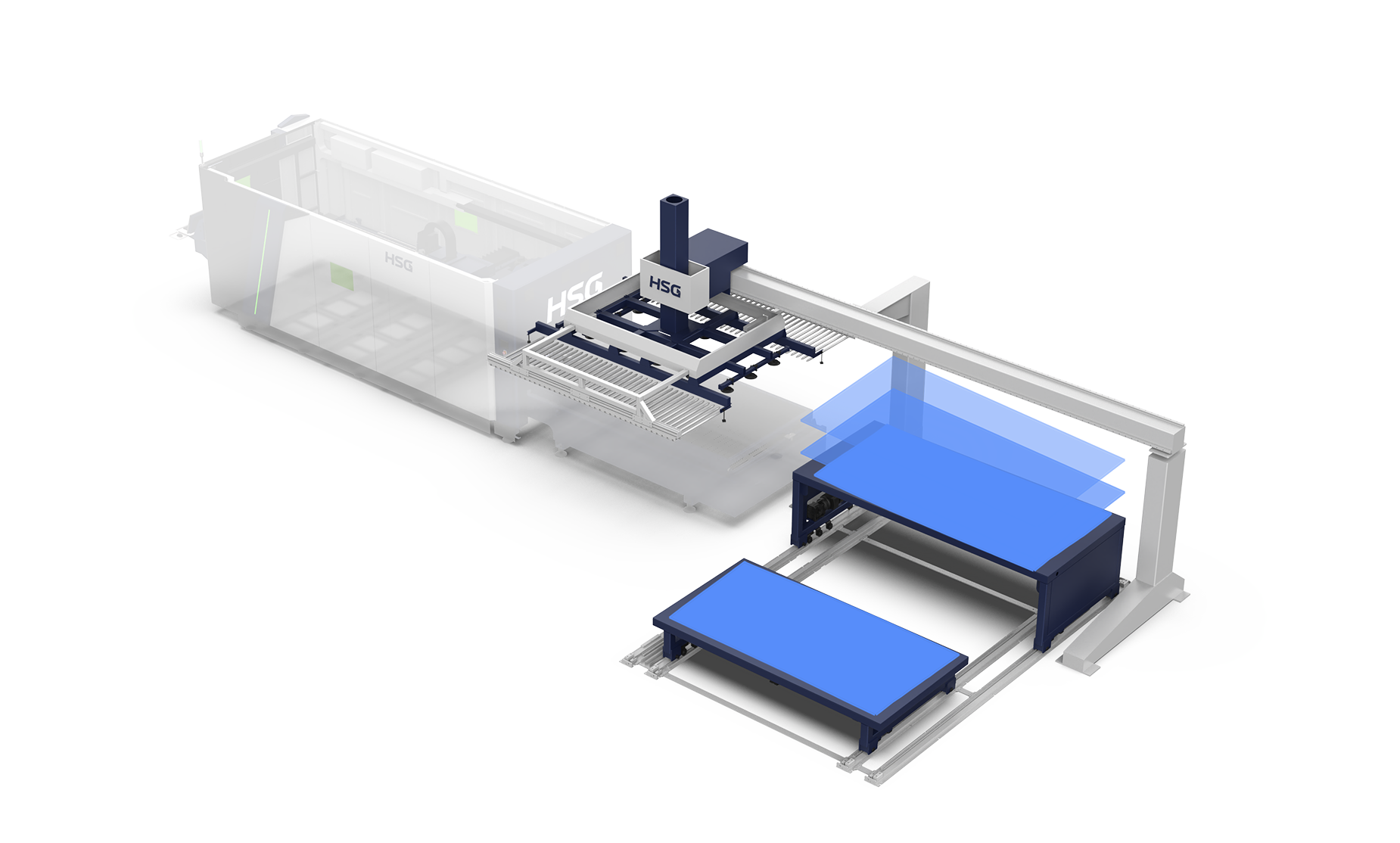

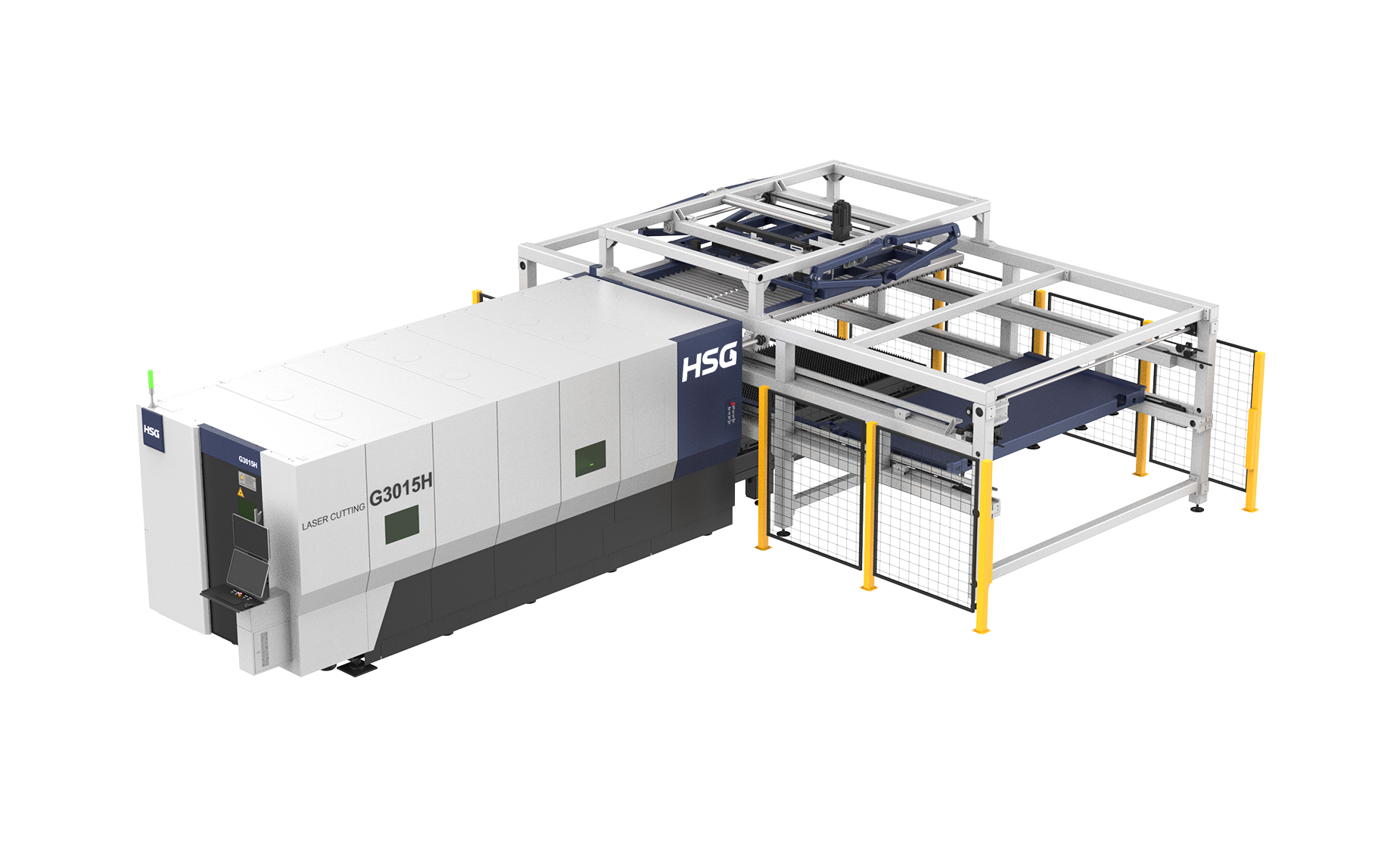

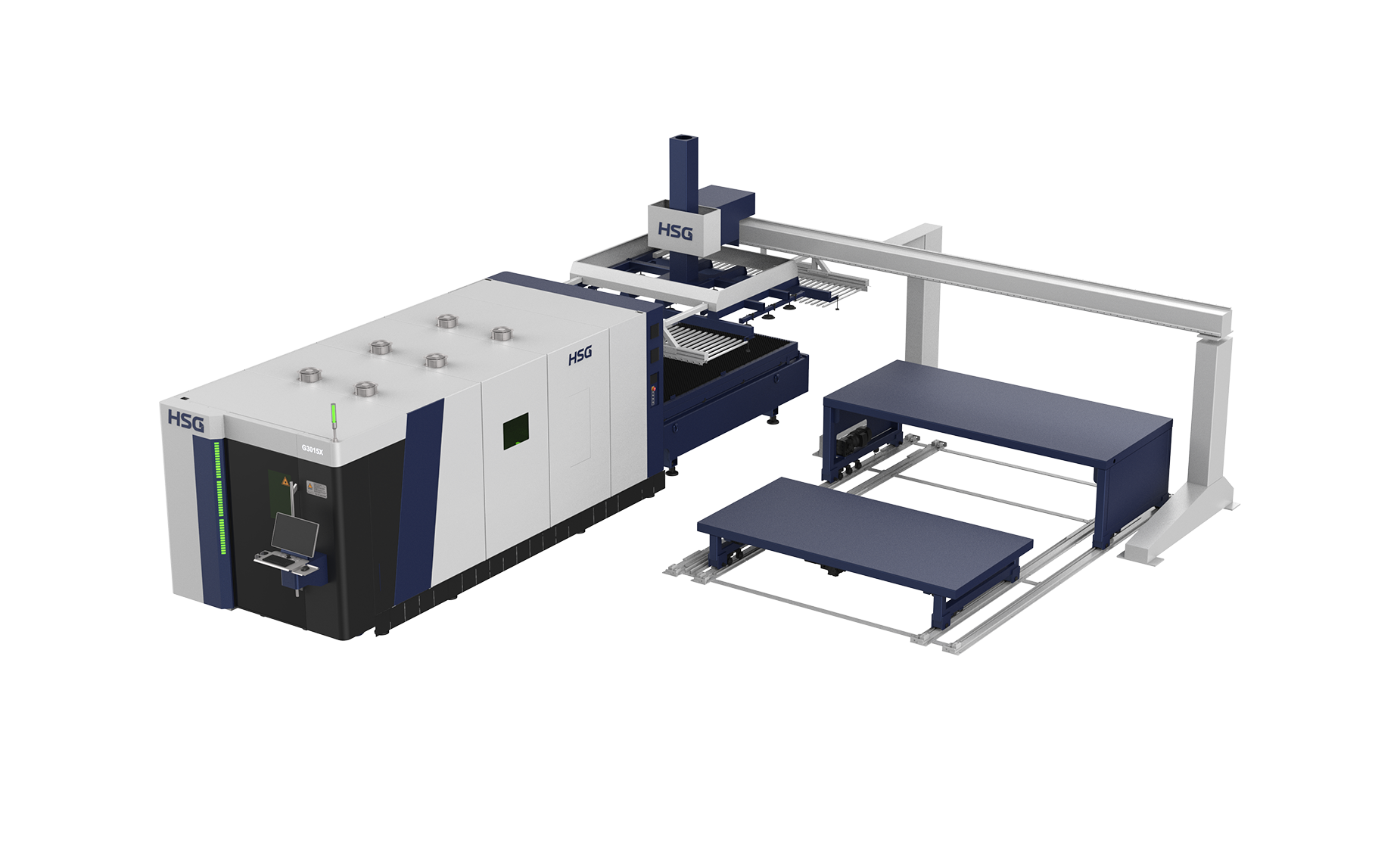

ALG Pro

Premium Automatic Loading & Unloading System

1

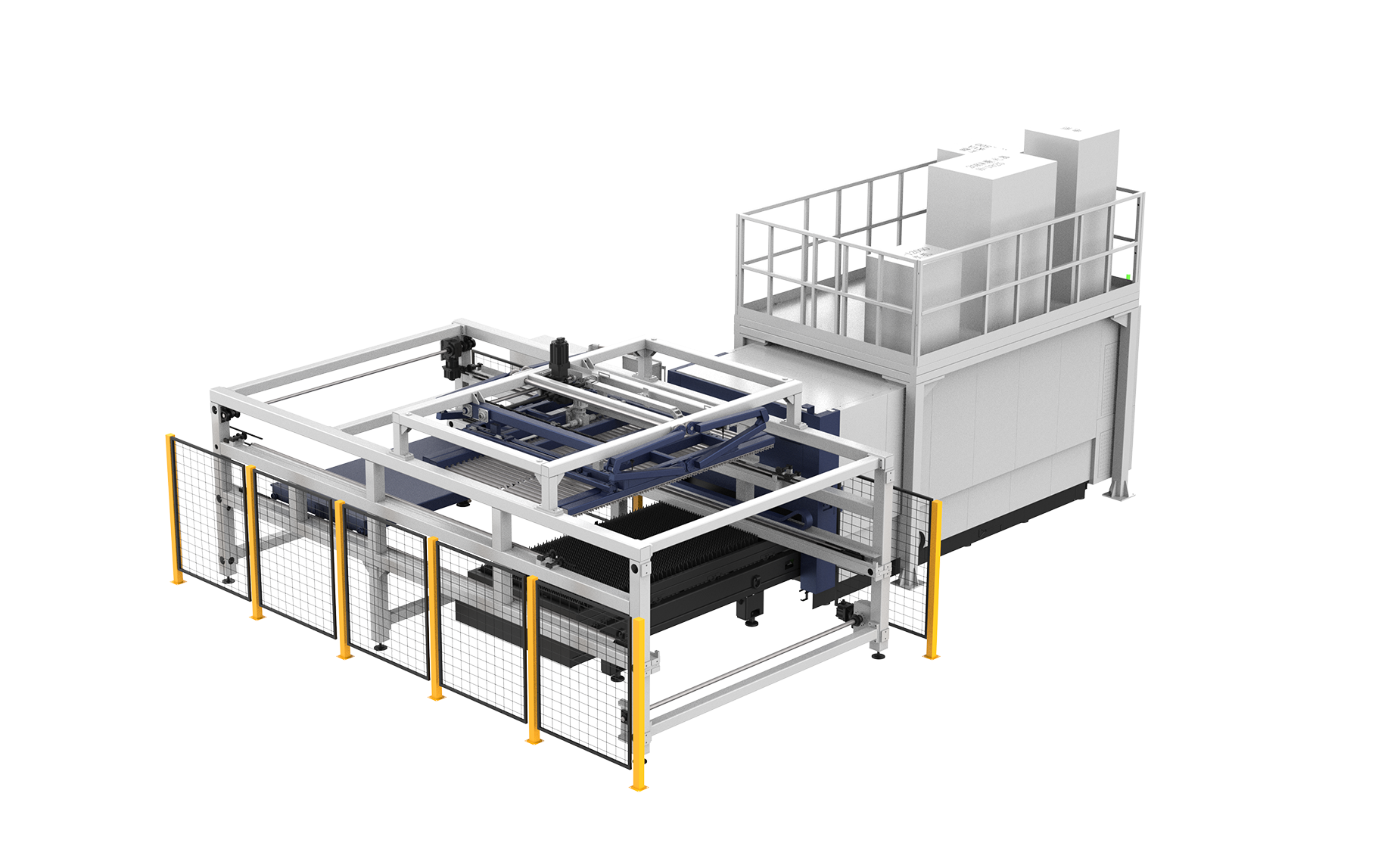

Optimal Use of Space Due to Compact Design

By adopting a compact gantry structure design, the limitations of traditional equipment, which occupy large areas, are overcome. The entire process of loading, cutting, and unloading can be completed within a smaller footprint. This not only significantly enhances site utilization but also allows for flexible adaptation to various factory layouts. As a result, enterprises can achieve production line expansion and upgrades even in space-constrained environments.

2
3

Boost Your Productivity with Time Saving

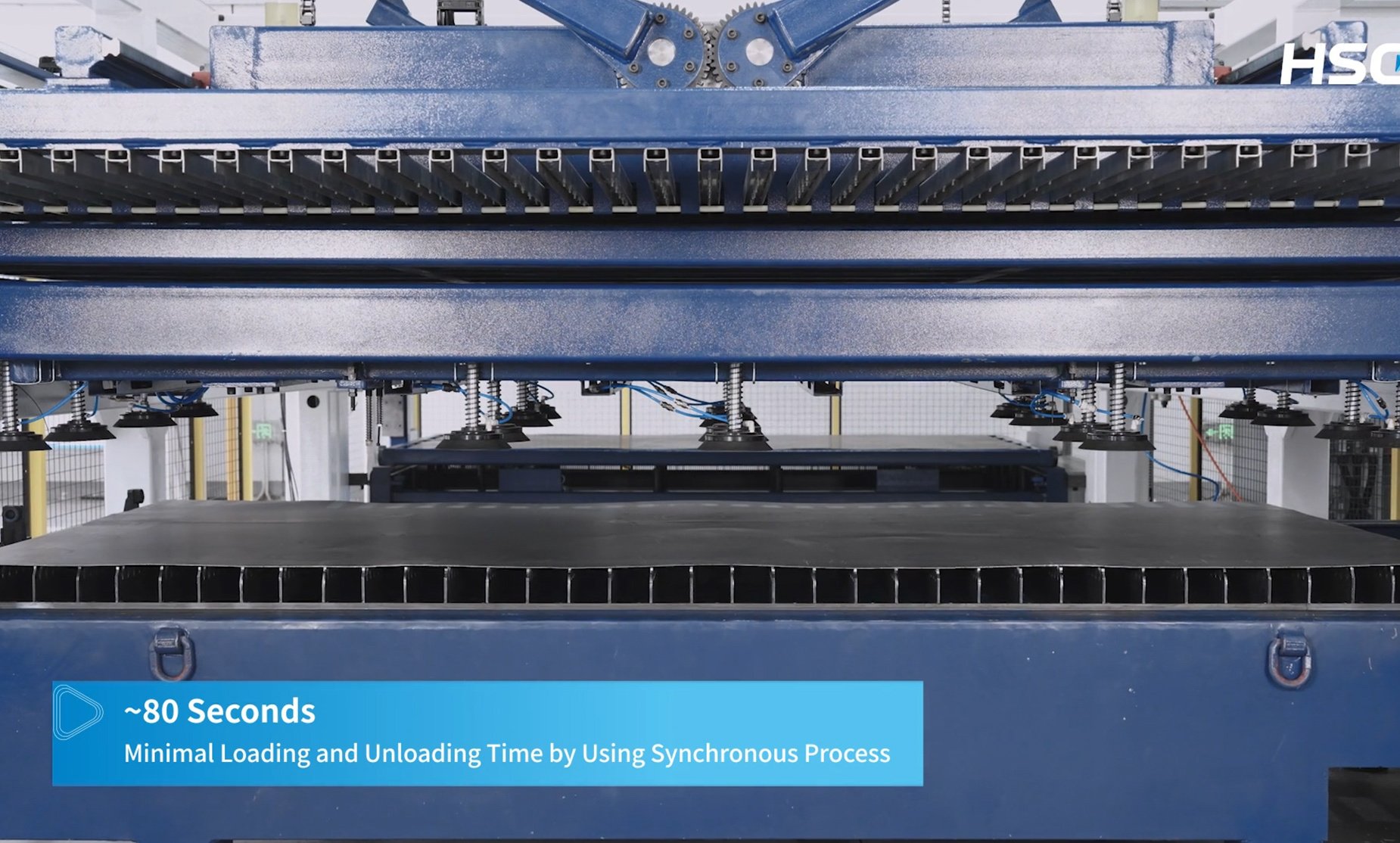

Short cycle times thanks to synchronous loader,a complete loading / unloading cycle only takes 80 seconds.

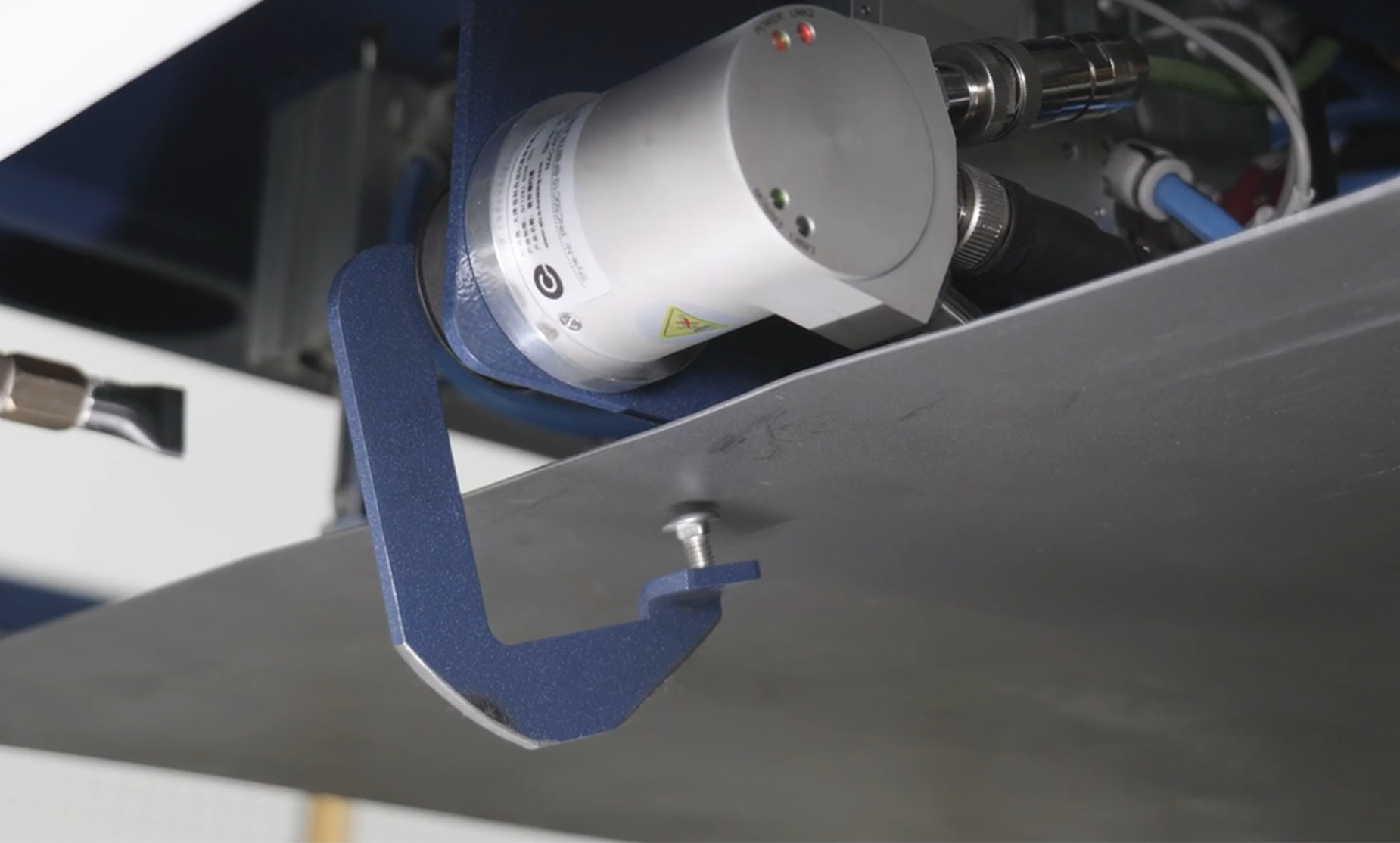

Sheet layering Thickness Measurement

Measure thickness of sheets automatically for accurate processing.

4
5

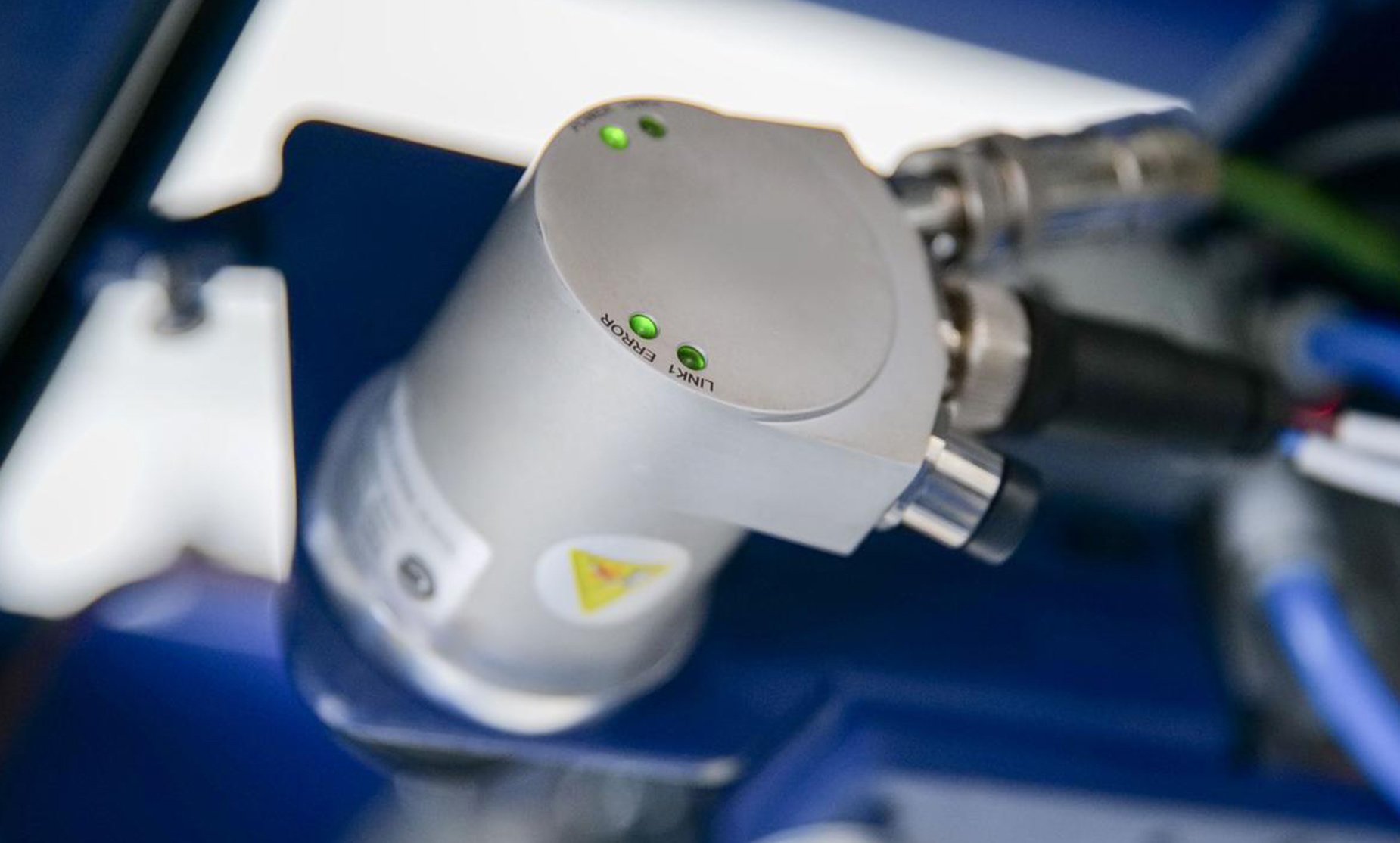

Reliability is the Key for Automation

The key to automation systems is reliability. Smart sensors ensure long-term stable operation, boosting both production efficiency and profitability.

HSG ALG Pro Technical Specifications


Model ALG Pro 3015
Structure
Gantry
Max.Loading Sheet Size
 10' x 5'
Min. Sheet Size: Loading/Unloading
3.28' x 3.28' / 0.5' x 0.5'
Sheet Thickness Range
 0.0315''-0.63''
Max. Sheet Weight for Loading/Unloading
 1323 lbs
Max. Loading Weight of the Finished Part Pallets
 6613 lbs
Incl
  Light curtain and fence / Thin sheet separation

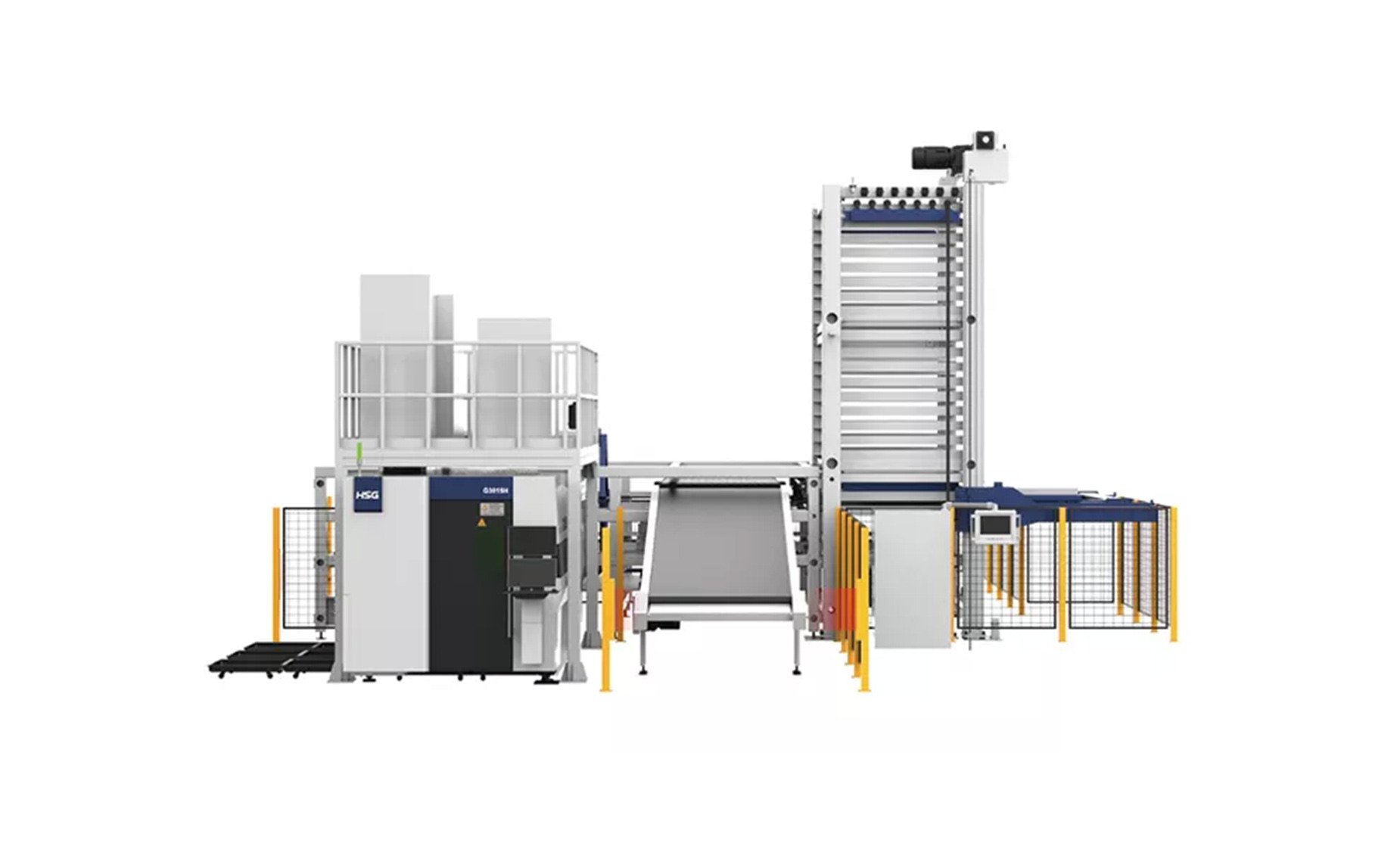

Store

Tower Storage System for Sheets

1

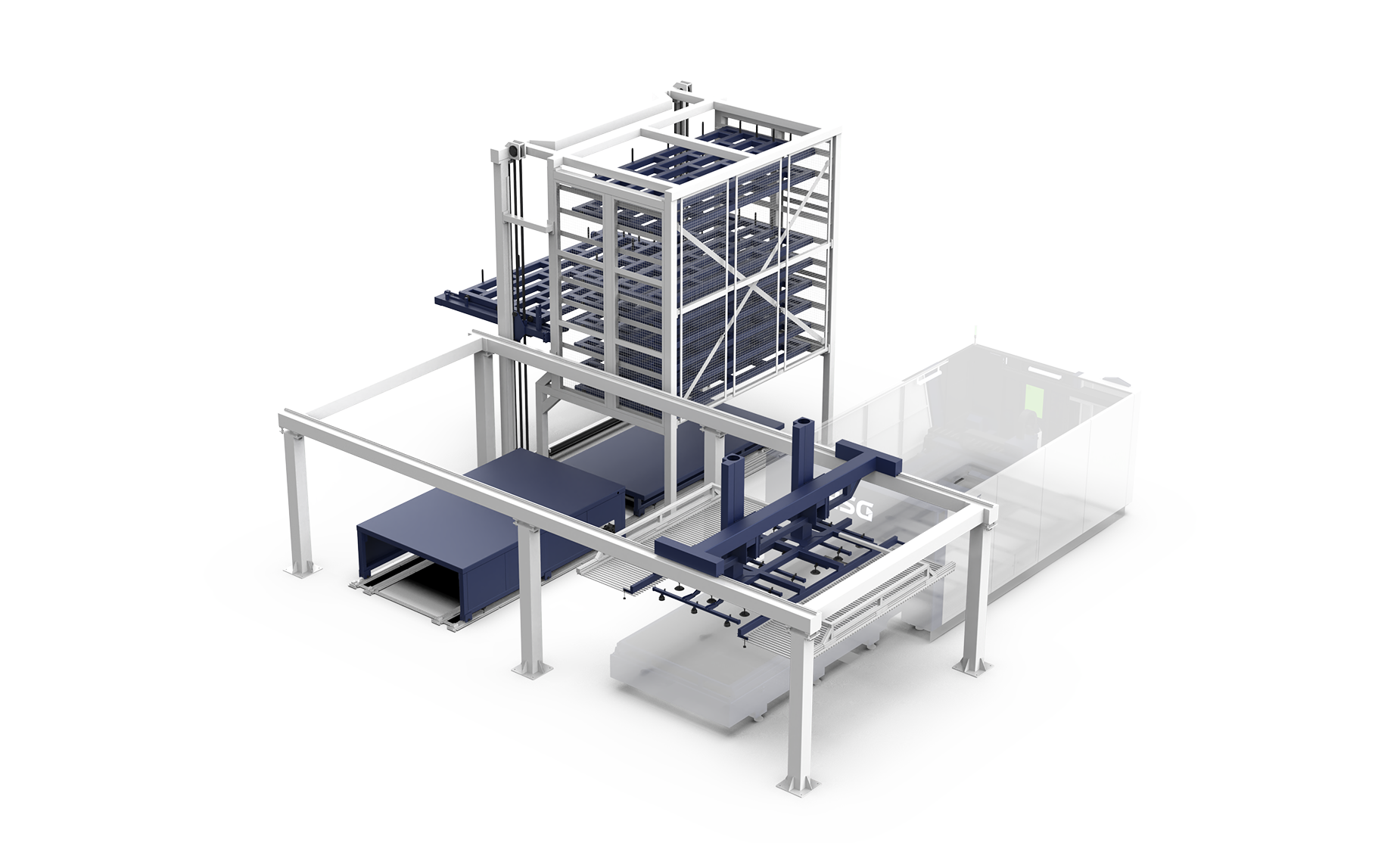

Scientific and compact board storage solution

Designed for efficient batch storage and seamless production deployment. The tower-style, three-dimensional material warehouse maximizes vertical space, offering enhanced storage capacity and streamlined access for production processes.

2
3

Automated Processing for a More Scientific Approach to Production

Based on the production plan, the system automatically schedules operations and supports unmanned cutting cycles. This reduces manual labor and minimizes errors, ensuring higher efficiency and accuracy.

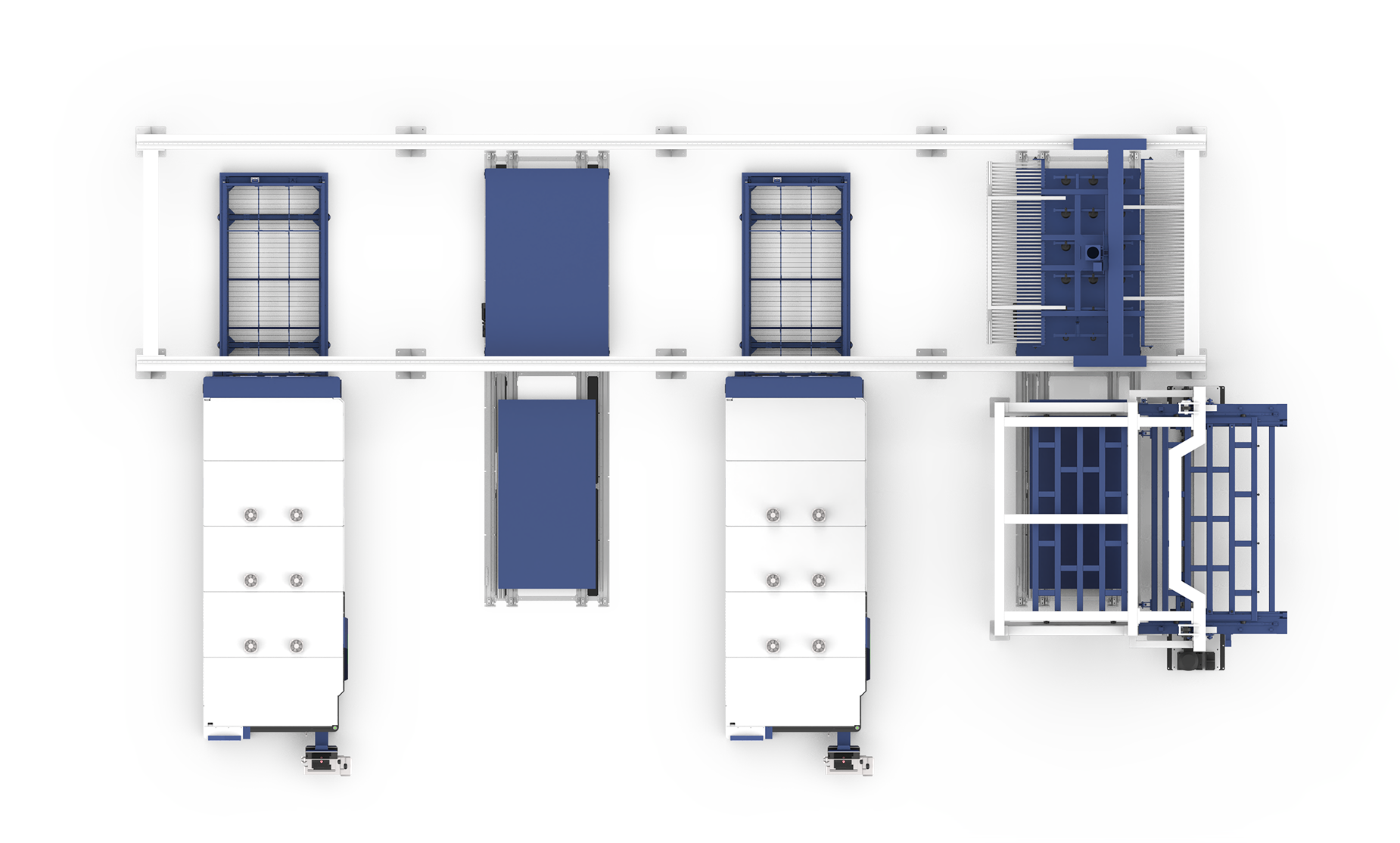

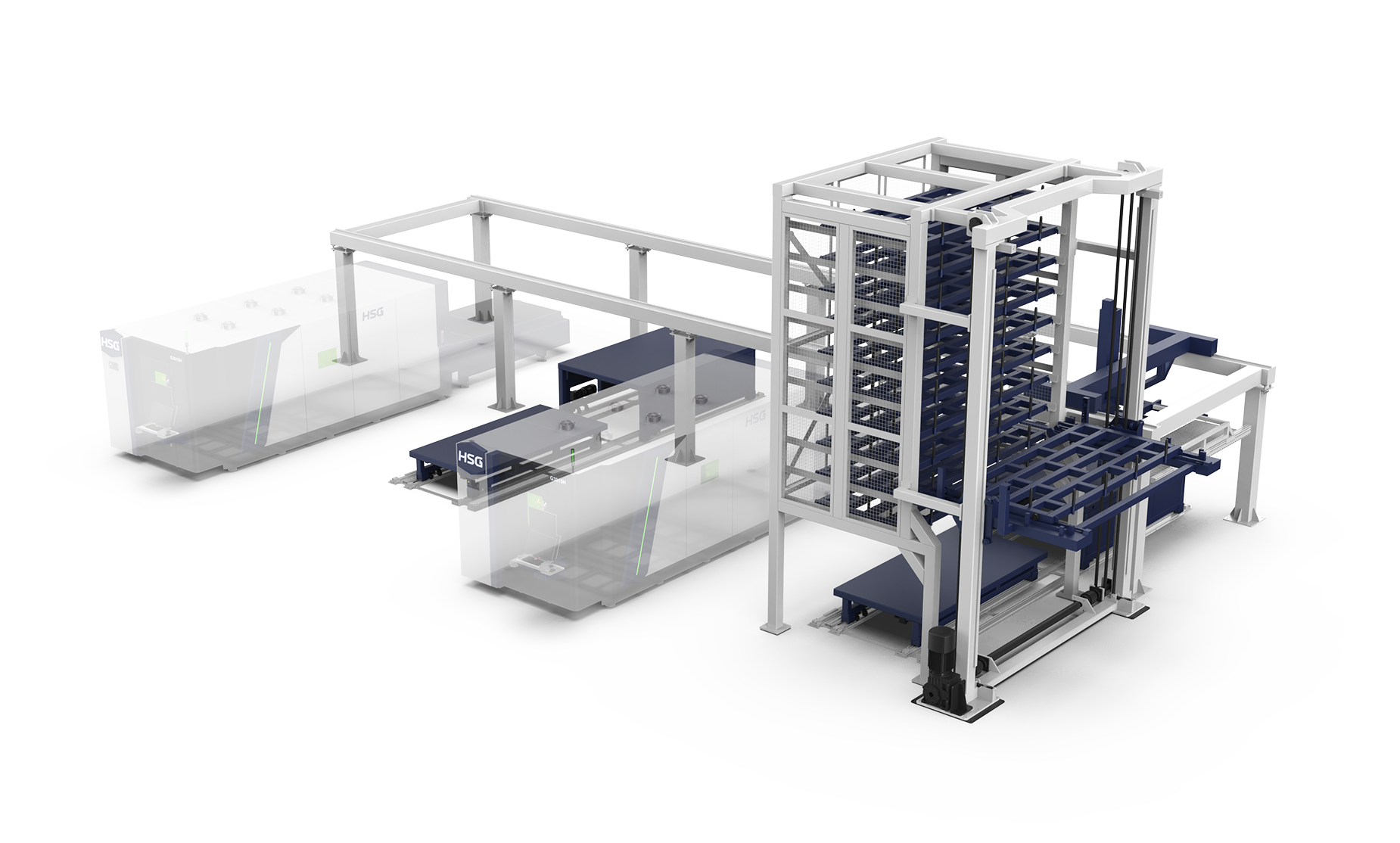

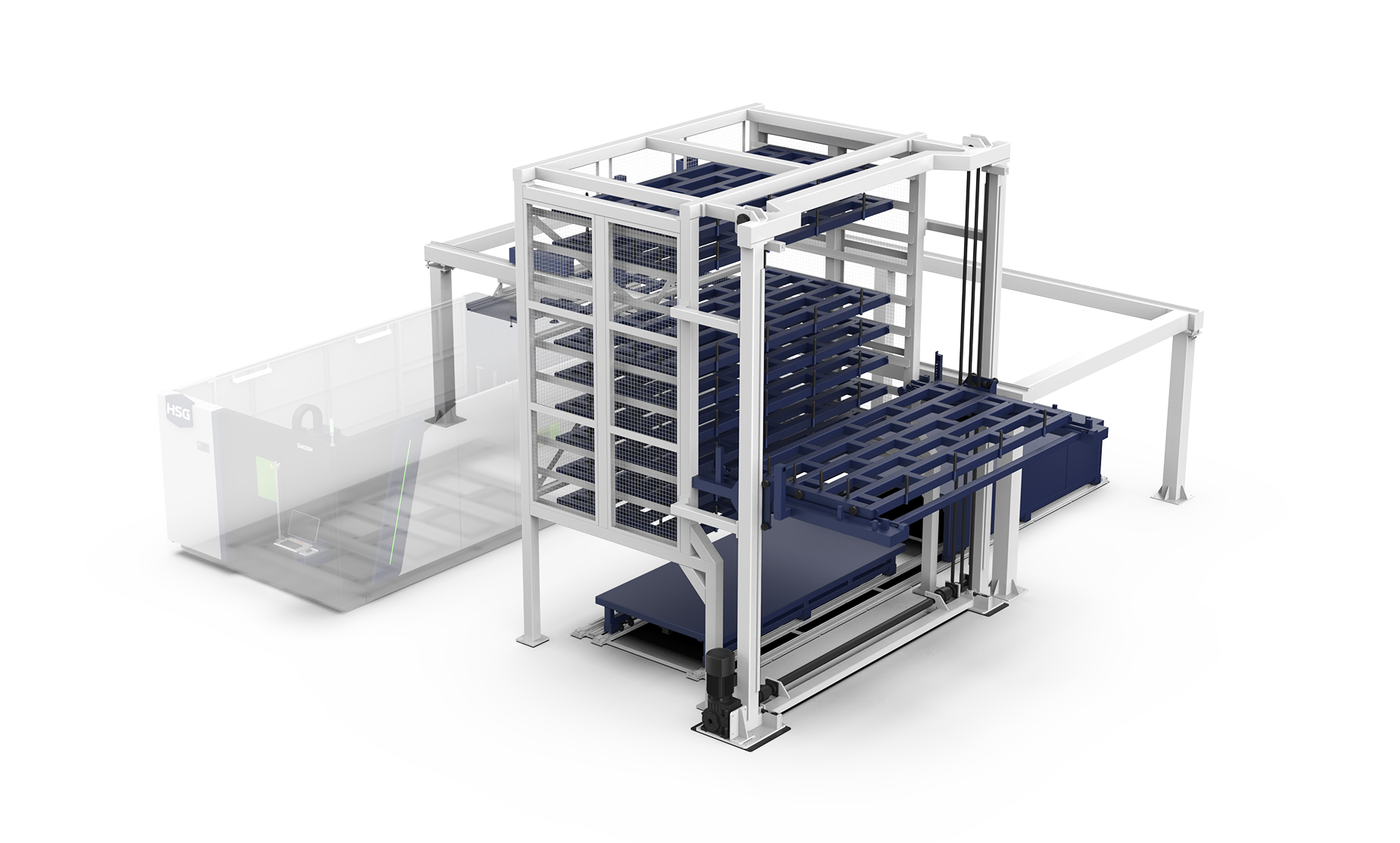

Modular Expansion with Support for One-to-many Operations

A single storage system can efficiently manage automatic loading and unloading of multiple cutting machines simultaneously. This not only maximizes factory space but also reduces energy consumption and operational costs.

4

HSG Store Pro Technical Specifications


Model Store3015-8-800 Store4020-8-1200
Max loading Sheet Size
118.11''×59.06''
157.48''×278.74''
Max Loading Weight
 1763.7 lbs 2645.55 lbs
Layer
8
 8
Each Layer loading Weight
 6613.87 lbs 6613.87 lbs
Each Sheet Thickness Range
 0.0394''-0.866'' 0.0394''-0.787''

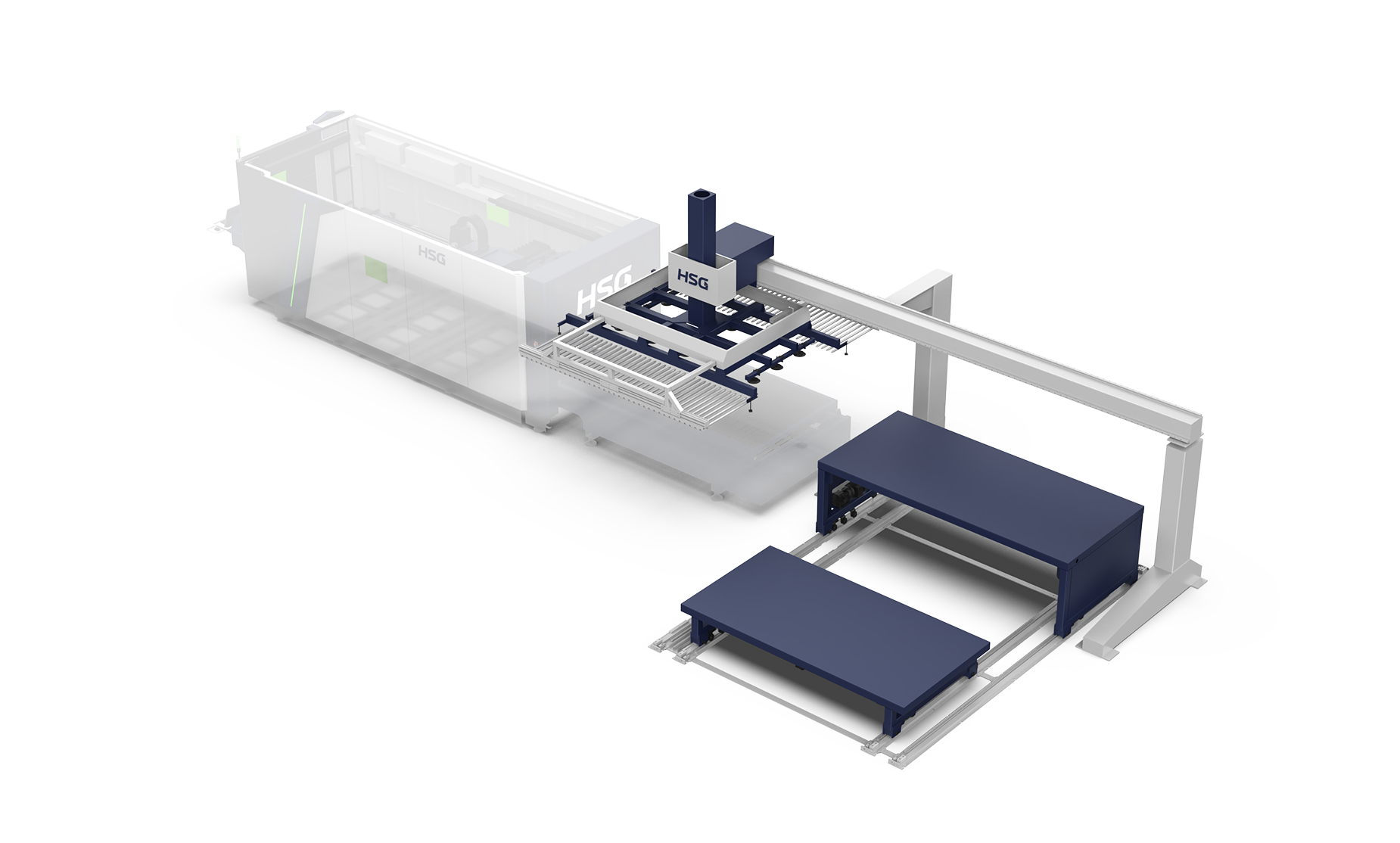

ALG

Automatic Loading & Unloading System

5

Automatic Operations, Ensure Safe Production

Achieve material loading automatically for saving time and improving productivity.

6
7

Sheet layering Thickness Measurement

Measure thickness of sheets automatically for accurate processing.

HSG ALG Technical Specifications


Model ALG3015-400 ALG4020-800
Compatible Model Series
G3015X，G3015H
G4020X，G4020H
Max Loading Sheet Size
 118.11''×59.06''
 157.48''×278.74''
Each Sheet Thickness Range
0.0394''-0.472''
0.0394''-0.472''
Max Loading Weight
 881.85 lbs 1763.7 lbs
