NVA - Laser Nozzle Visual Aligner
Now Available for Pre-Order — Worldwide Shipping Supported Enjoy 30% Off When You Pre-Order Today
FASTER, MORE ACCURATE, AND SAFER
A GAME CHANGER OF BEAM CENTERING
Innovative Fiber Laser Cutting Machine Nozzle Visual Aligner. Precision You Can See. Efficiency You Can Trust. Made in Japan. Engineered for laser professionals.
Highlights：
- 90-Second Auto Calibration
- ≤0.08 mm Precision

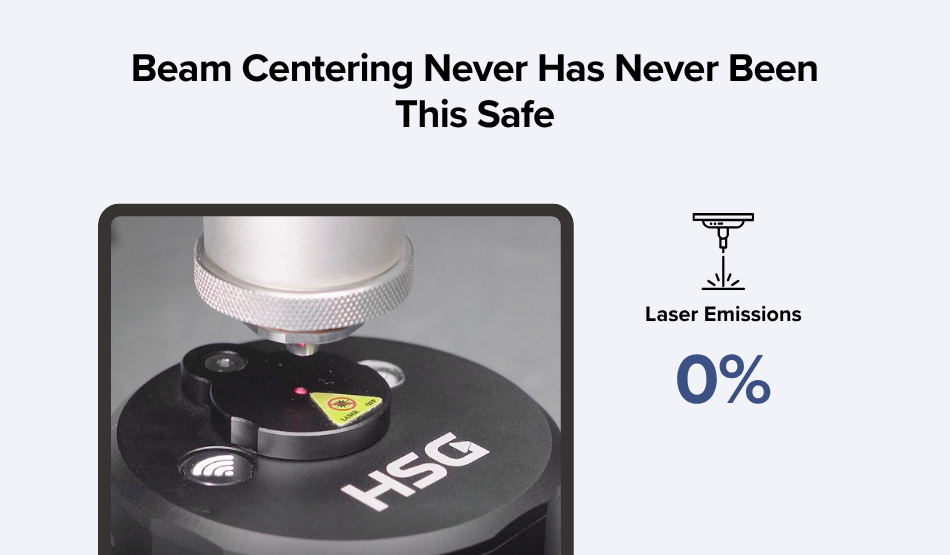

- Red-Light Simulation, Zero Laser Risk
- Full Smartphone Control
- Compatible with Mainstream Fiber Laser Cutters
Product Overview
NVA is a next-generation laser alignment solution designed for compatibility with most standard fiber laser heads, including Raytools, Precitec, and WSX. Featuring a camera-guided interface and digital crosshair overlay, it enables sub-millimeter nozzle-to-beam centering in under 2 minutes—eliminating the need for burn tests or manual guesswork. With plug-and-play installation and intuitive operation, NVA requires no special training and can be set up in less than 30 minutes using the included guide and video. Smart Calibration Memory reduces recheck frequency, while the consumable-free design saves time and cost. Whether you’re upgrading an existing machine or streamlining daily startup routines, NVA delivers fast alignment, greater consistency, and enhanced production reliability—shift after shift.
Brouchure
Download brochure on how you can level up your productivity with NVA
Click the following button to download the brochure of NVA.
Faster, Smarter, More Accurate
NVA vs. Traditional Beam Centering
|
Feature
|
Traditional Beam Centering
|
Nozzle Visual Aligner
|
| Alignment Time | 3-5 min | 1.5 min （One-step coaxial calibration in 10 seconds） |
| Accuracy | Manual Interpretation | Camera-Guided Precision |
| Training Required | High | Low |
| Repeatability | Low | High |
| Consumables | Required | None |
How To Order
-
Submit Your Request
Leave your contact details and the model of your current laser cutting machine using our online form.
-
Expert Compatibility Check
Our technical team will get back to you within 2 business days to confirm compatibility.
-
Confirm Purchase
Once confirmed, you can complete payment online or purchase through an authorized distributor.
-
Worldwide Shipping
Your NVA unit will be shipped from the nearest global logistics center directly to your address.

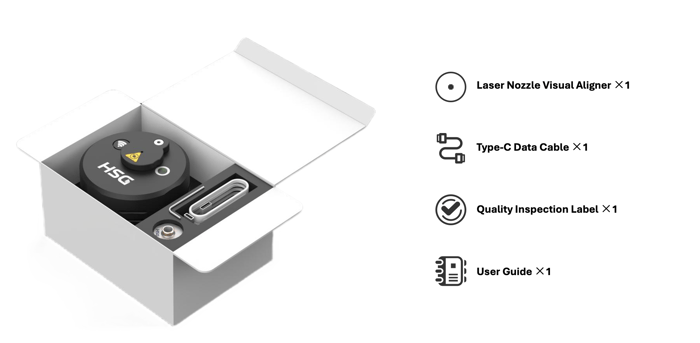

In The Box
NVA
Specs & Features
|
Coaxial Deviation |
< 0.08mm |
|
Compatible Nozzle Specifications |
1.0mm - 3.0mm |
|
Weight |
621g (Battery included) |
|
Dimensions |
77mm(H) ×105 mm(Diameter) |
|
Power Supply Type |
External Power Supply or Built-in 14500 Battery |
|
Operating Mode |
Automatic Judment Mode (Auto) or Manual Judgment Mode (Mid) |
|
Operating Temperature |
0℃ - 60℃ |
|
Wi-Fi Specifications |
5 GHz Wi-Fi |
|
Package Contents |
Laser Nozzle Visual Aligner ×1, Type-C Data Cable ×1, Quality Inspection Label ×1, User Guide ×1 |
|
Built-in Battery Specification |
Battery Type: 14500 Pointed-Head Rechargeable Lithium or NiMH Battery Quantity: 2 Output Voltage/Current: 3.7V per 14500 cell, Current ≥ 0.6A Battery Capacity: ≥ 1000mAh per cell (Higher capacity = longer runtime) Dimensions: Diameter 14mm, Height 50mm |
|
External Power Supply Specification |
Power Adapter: Output Voltage ≥ 5V, Current ≥ 2A (Fast-charging phone adapter recommended) Power Bank: Output Voltage ≥ 5V, Current ≥ 2A (Fast-charging power bank recommended) |
