GX Series
3-30 [kW]
Acceleration
1.5 [G]
Max. Linkage Speed
Up to 459 ft/min
Your New Benchmark In
Fiber Laser Cutting Productivity
OVERVIEW
Fine-tuned In Tokyo, Based in Chicago
The reliable and cost-effective solution for high-power 2D laser processing
POWERFUL PERFORMANCE, ECONOMICAL CHOICE
Up to 30kW of Powerful Performance
The new-generation GX Series features a comprehensively optimized transmission system that delivers enhanced dynamic performance, precisely matching optical inertia ratios to support high-power cutting from 3kW to 30kW. This upgrade significantly boosts overall performance, providing a next-level cutting experience.
Boost Your Productivity with Dual Exchange Platform
With its innovative dual exchange platform design, the GX Series enables a continuous operation cycle where cutting and processing run simultaneously with loading and unloading. This setup significantly boosts productivity, delivering a substantial increase in processing efficiency to keep your workflow seamless and uninterrupted.
MADE FOR HIGH-POWER, EASE OF INTELLIGENT
— ALPHA T 2.0 BUS SYSTEM
Powerful Bus Control System
The GX Series, equipped with the Alpha T 2.0 bus control system, delivers a suite of high-performance cutting functions. With advanced features like Intelligent Path Optimization, Smart Nesting Algorithms, Seamless Micro Connections, Non-Sensory Piercing, and Cutting Head Movement Avoidance, this system makes high-power laser cutting both effortless and incredibly precise.
BUILT FROM THE GROUND UP FOR
RELIABILITY & DURABILITY
Maintain Accuracy with Z-axis Dust Cover
Protect the internal transmission system from smoke and dust pollution, ensuring accurate and stable operation of the equipment.
Robust Matrix Machine Bed with enhanced Rigidity
The GX Series features a robust matrix machine bed with enhanced rigidity. A redesigned matrix structure and cross-sectional welding fortify the entire machine bed, significantly boosting structural stability and minimizing impacts that could compromise performance.
ADVANCED SAFETY AND HEALTH STANDARDS FOR
ALL FABRICATORS
Enhanced Safety & Stability with Integrated Central Control
The GX Series features a unified circuit and control system that eliminates exposed wiring, safeguarding against potential damage in tough workshop conditions. This integrated design promotes safe, stable operation and delivers reliable, long-lasting performance.

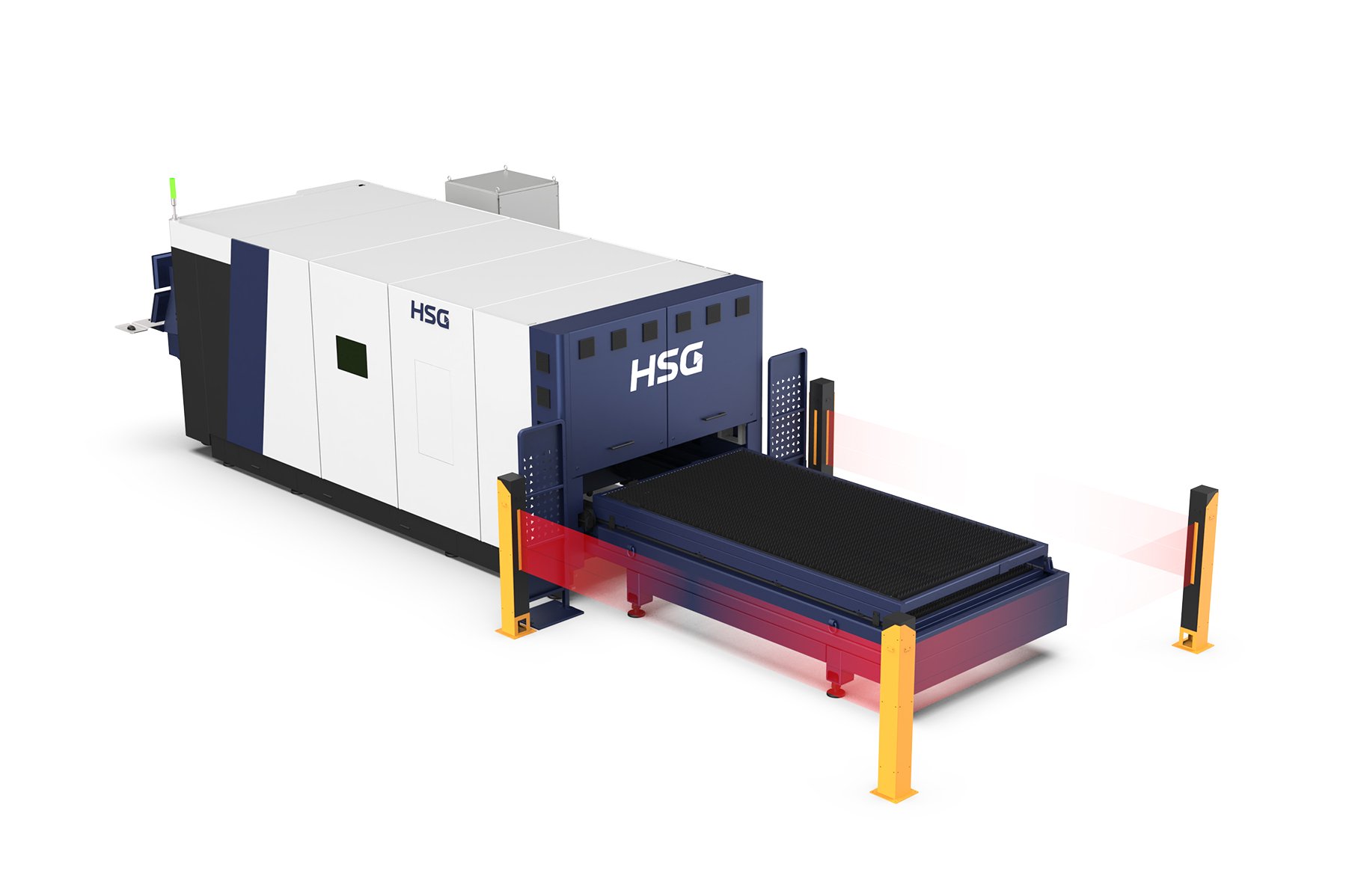

Safe & Clean Workspace with Isolated Work Area
The GX Series features a separated workspace design that keeps operators safely distanced from the cutting platform, enhancing personnel safety. This setup also reduces smoke and dust exposure, protecting precision components from contamination and extending the equipment’s lifespan.
COST-EFFECTIVE AUTOMATION SOLUTIONS FOR
ENHANCED PRODUCTIVITY
Flexible & seamless automation across the entire process
The GX Series features flexible automated loading and unloading systems. This integration minimizes labor, reduces cycle times, and boosts efficiency. Easily adaptable, the GX Series manages various metals, sizes, and shapes with precision. It accurately measures thickness and positions materials for high cutting accuracy and superior product quality.
GX Technical Specifications
For more details, feel free to reach out to us!
|
Model
|
G3015X
|
G4020X | G6025X | G12025X |
|
Power
|
3-20kW
|
3-20kW
|
6-20kW
|
12-30kW
|
|
Processing format (L*W)
|
120*60 inches |
160*80inches
|
240*100inches
|
492*100inches
|
|
X/Y-axis repositioning accuracy
|
±0.001 inches
|
±0.001 inches
|
±0.001 inches
|
±0.001 inches
|
|
Max. Linkage Speed
|
459 ft/min
|
459 ft/min
|
459 ft/min
|
459 ft/min
|
|
Max. Linkage Acceleration
|
1.5G
|
1.5G
|
1.5G
|
1.5G
|
