ECONOMICAL

T Series

Laser power
3-6 [kW]
Max Diameter
13.78''
Max Tube Weight
660 [lbs]

GET A DEMO

Your New Benchmark In
Fiber Laser Cutting Productivity

OVERVIEW

Engineered in Japan

Developed at HSG’s Global R&D Center in Kanagawa, Tokyo—a hub of innovation in laser optics. Designed to deliver reliable, highly efficient, and cost-effective solutions, HSG equipment empowers customers to stay ahead in performance and productivity.

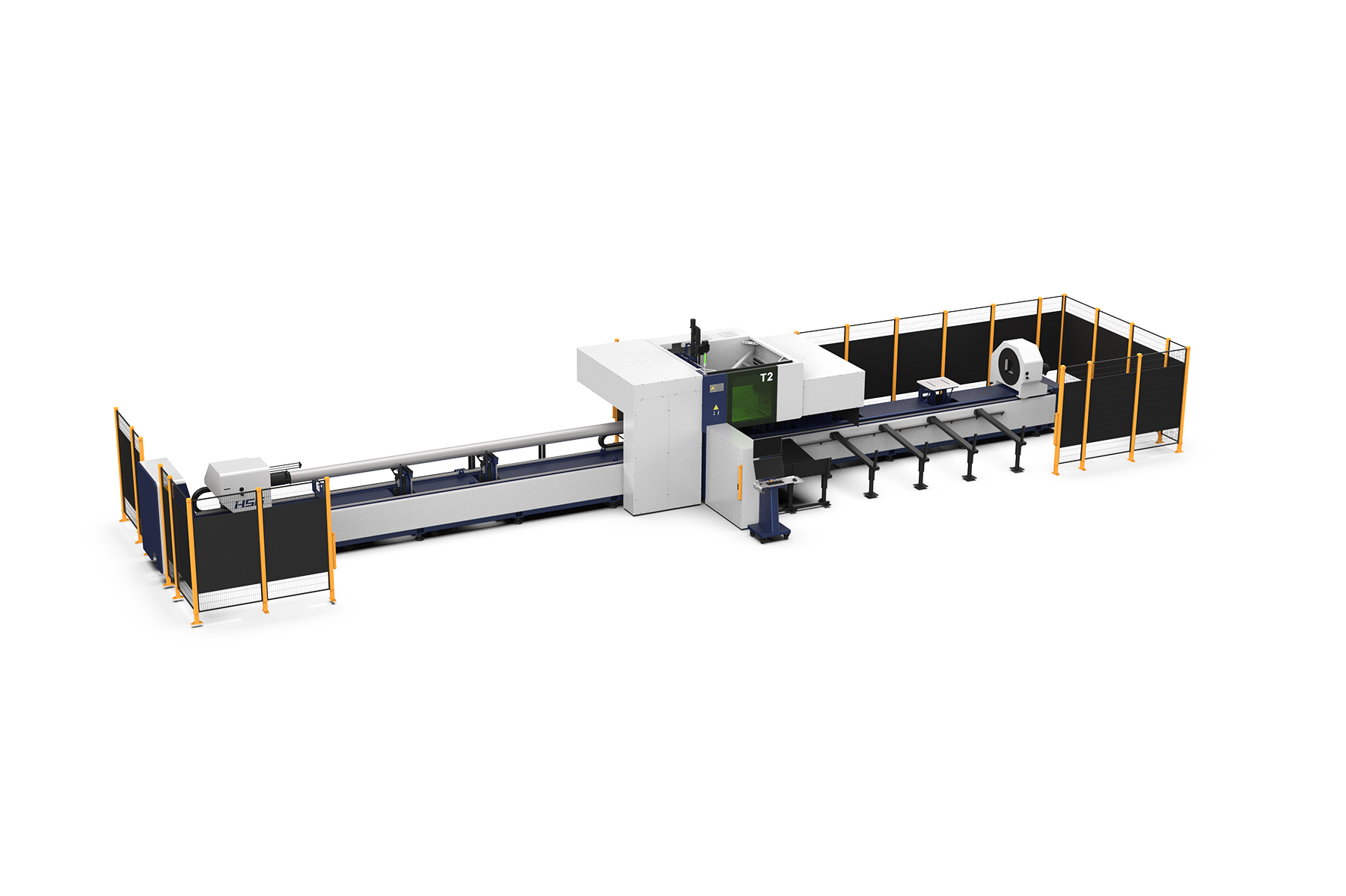

Reliable 3-Chuck Cutting for Mid-Size Tubes

The T-Series supports tubes with a radius of 0.79-9.45 inches (T2) or up to 13.78 inches (T3), offering a significantly expanded processing range. Its advanced three-chuck design ensures greater load-bearing capacity, enables short-tail cutting, and facilitates seamless automatic cutting of finished products. This state-of-the-art solution meets diverse processing needs while maximizing cost efficiency for customers.

ADVANCED EFFICIENCY AND COST SAVINGS

Full-Length Tube Loading and Unloading

The hollow chuck design allows tubes to pass through effortlessly, enabling the loading and unloading of entire tubes. This design increases the maximum tube length capacity, with automatic blanking lengths reaching up to 19.7 feet.

Zero Tail Cutting

The chuck’s forward and backward movement automatically adjusts the tube’s position, achieving zero tailings during cutting. This maximizes tube utilization and reduces material costs.

ENHANCED CUTTING PRECISION AND

SEAMLESS HANDLING

Independent Follow-Up Support on the Loading Lathe

The 7-meter-long loading lathe bed is equipped with four highly sensitive, independent servo follow-up support components. These components provide robust support during tube rotation cutting, ensuring precision and stability.

Independent Follow-Up Support on the Unloading Lathe

The 6-meter unloading lathe bed features four highly sensitive, independent servo follow-up support components. Combined with the system’s intelligent cutting mode, this setup enables seamless, stepless unloading of workpieces up to 6 meters long, enhancing efficiency and accuracy.

BOOST PROCESSING AUTOMATION WITH PRECISION

Photoelectric Loading Detection

Advanced photoelectric detection accurately identifies the size, shape, and position of each tube, enabling precise clamping by the chuck. Through real-time monitoring and feedback, the system dynamically adjusts equipment status, ensuring stable, reliable, and fully automated processing.

REINFORCE CHUCK LOAD-BEARING CAPACITY

Durable Dual Front, Single Rear Chuck Structure

The durable dual-front, single-rear chuck design provides comprehensive clamping and support for tubes, greatly enhancing load-bearing capacity. This design ensures a smoother cutting process while delivering outstanding cutting precision.

SIMPLIFYING OPERATIONS WITH

VERSATILE FUNCTIONS

HSG-X10000 Bus Cutting System

Featuring the HSG-X10000 bus cutting system, this solution offers a wide range of auxiliary functions tailored for pipe cutting applications, covering the most commonly used operations. Its user-friendly interface ensures easy operation, meeting diverse cutting needs while enhancing production efficiency and processing quality.

GX Technical Specifications

For more details, feel free to reach out to us!

Model	T2	T3
Power	3-6kW	3-6kW
Tube Range in diameter	Φ0.79-Φ9.45 inches	Φ0.79-Φ13.78 inches
Cutting Capacity of Square Tube	□0.79×0.79 - □9.45×9.45 inches	□0.79×0.79 - □13.78×13.78 inches
Weight of Single Tube	660 lbs	1,320 lbs
Chuck Speed	100 rpm	80 rpm
Max Linkage Speed	328 ft/min	262 ft/min
Maximum Acceleration	1.0G	1.0G
