Cut Large, Cut Heavy

Your Best Choice for Large-Tube Laser Cutting

PRO

TX Series

Cutting Head
3D
Laser Power
6-20 [kW]
Max Diameter
14.2"/19.7"

DOWNLOAD BROCHURE

OVERVIEW

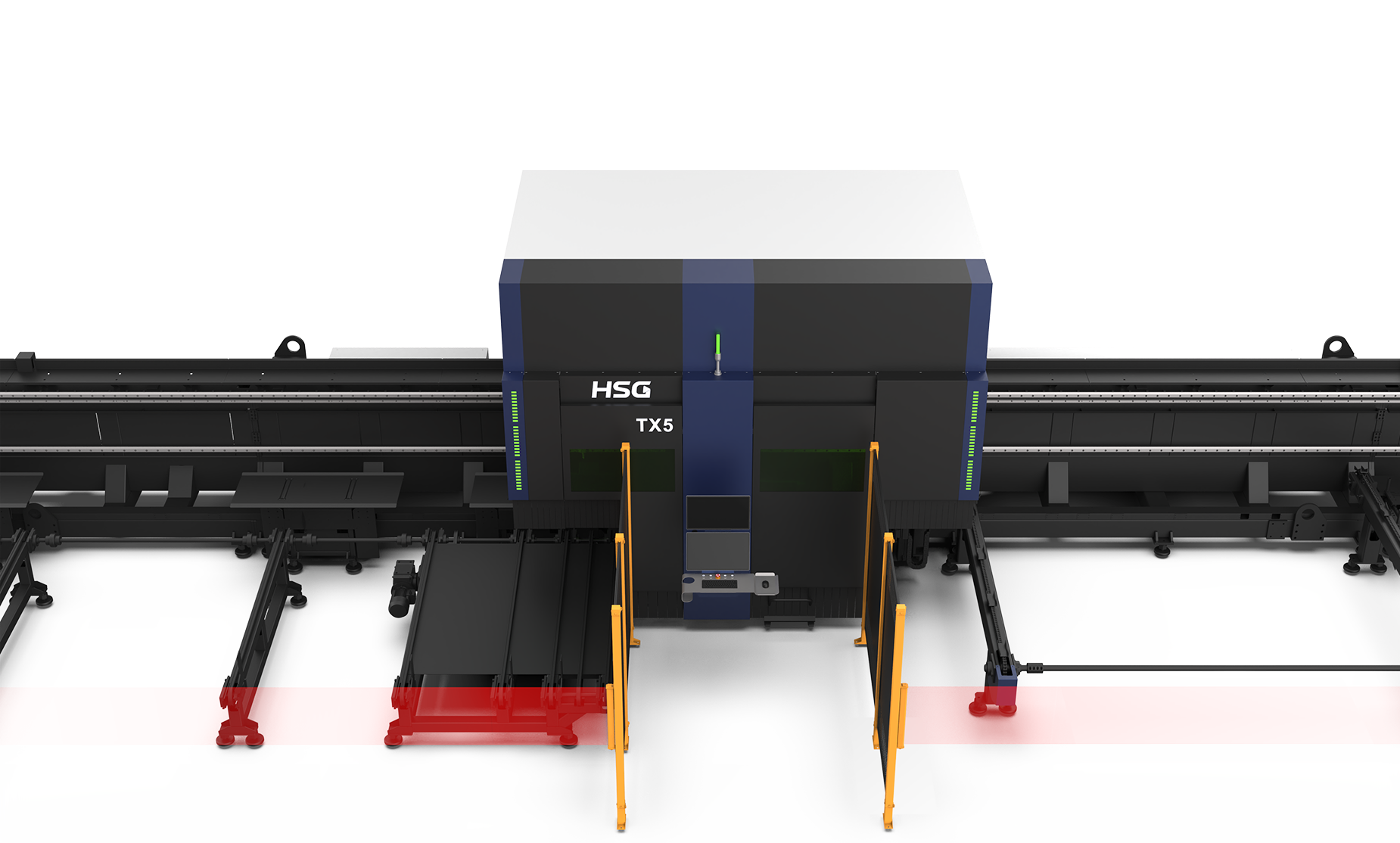

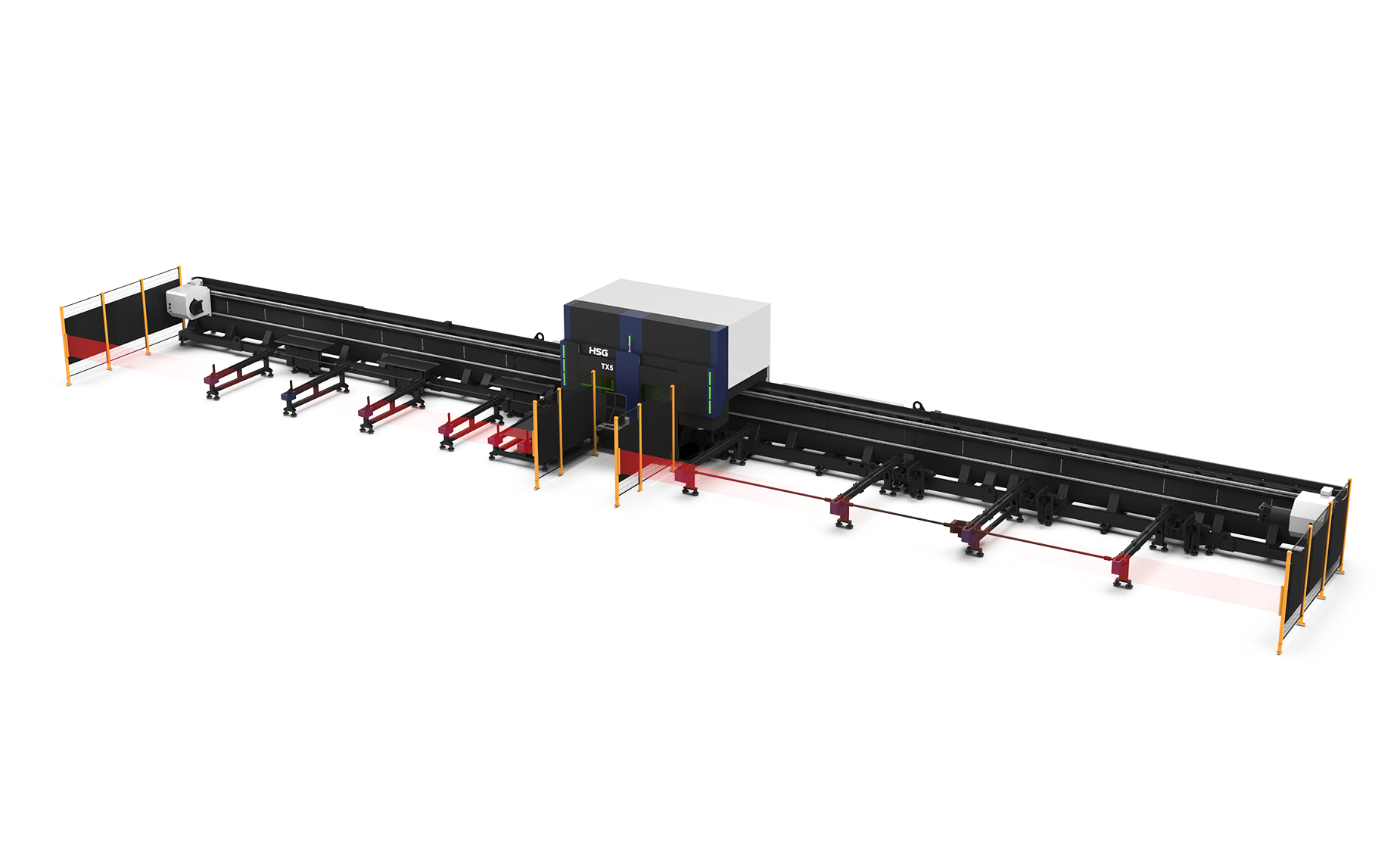

Designed for large-diameter tubes and profiles

Designed to process tubes up to 14.2 inches (TX3) / 19.7 inches (TX5) in diameter and weighing up to 2,645 pounds (TX3) / 3,307 pounds (TX5), the TX Series excels in applications requiring robust cutting capabilities, such as construction, aerospace, energy, and transportation. Its advanced automation features and cutting-edge technology ensure seamless integration into modern production lines.

Build for Modern US Manufacturing Needs

The HSG TX Series is purpose-built to address the evolving needs of the US manufacturing sector. With its ability to handle large-diameter tubes and heavy profiles, it is the ideal solution for industries that demand precision, efficiency, and versatility.

Unmatched Capability, Versatile Profile

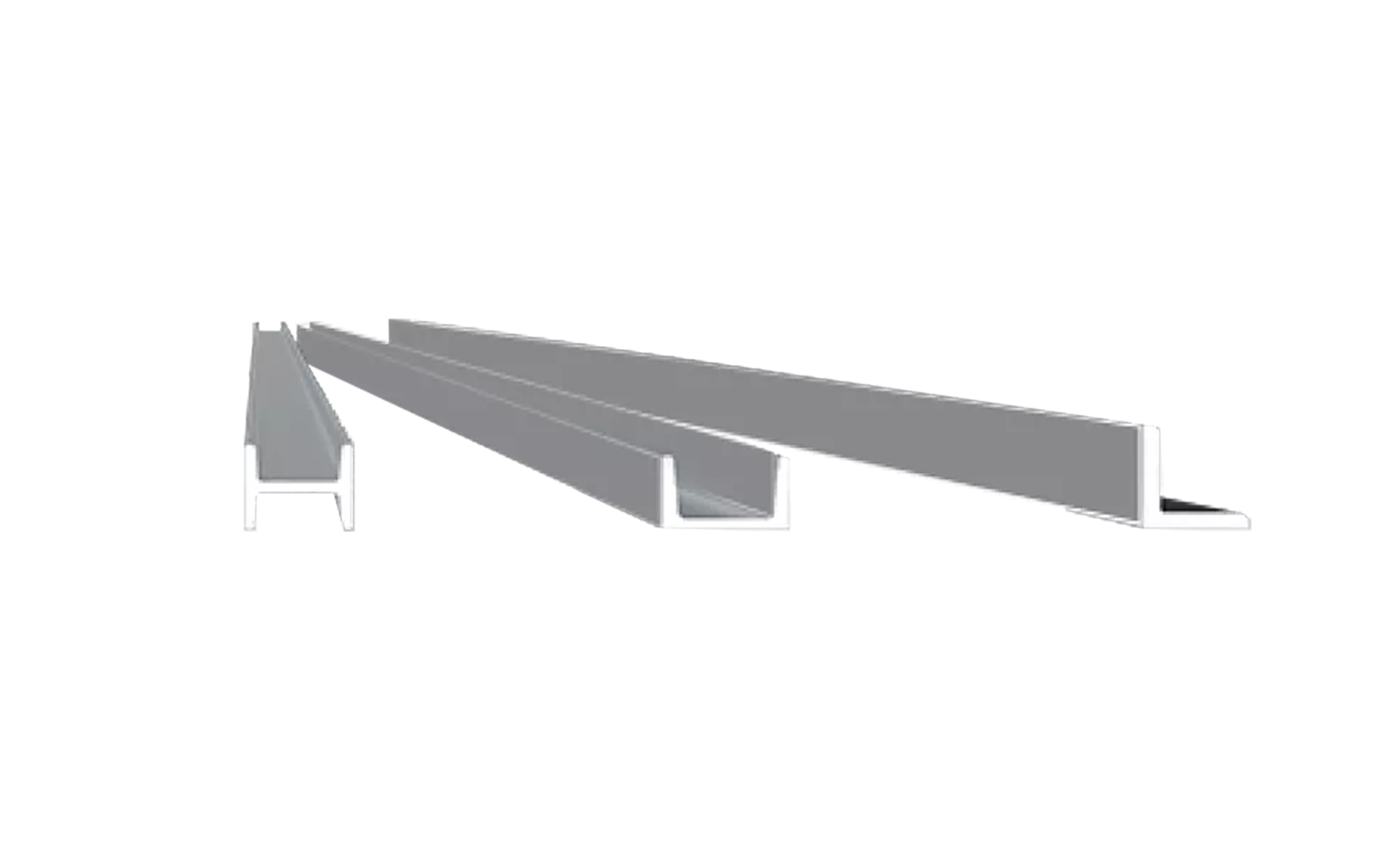

Engineered for versatility, TX Series supports cutting round, square, and complex profiles such as channel steel, angle iron, and I-beams, meeting diverse production demands with ease. It handles tubes weighing up to 3,300 lbs, accommodates round tube diameters ranging from 2 inches to 20 inches, and processes lengths up to 40 feet—all in a single, powerful solution built to streamline operations and enhance efficiency.

Backed By U.S. Support

PROVEN BY U.S. FABRICATORS

With over 450 U.S. installations, HSG’s 2D lasers have proven reliability among American fabricators. They see higher throughput and consistent performance that drives success in metal fabrication.

CUSTOMER SERVICE BY HSG U.S.

HSG’s dedicated U.S. service team stands ready to deliver rapid support whenever you need it. Rely on quick response times and on-site assistance to keep your production on schedule.

FAST LOCAL SPARE PARTS DELIVERY

Enjoy minimal downtime with immediate access to the spare parts you need. Our local warehouse ensure your production stays on track through fast shipping and reliable inventory.

SAVE YOUR MATERIAL, ENERGY & TIME

Static Cutting for Energy Efficiency

Static cutting eliminates the need for tube movement during processing, ensuring precise machining while significantly reducing energy consumption by minimizing chuck movement. This approach not only enhances efficiency but also lowers operational costs.

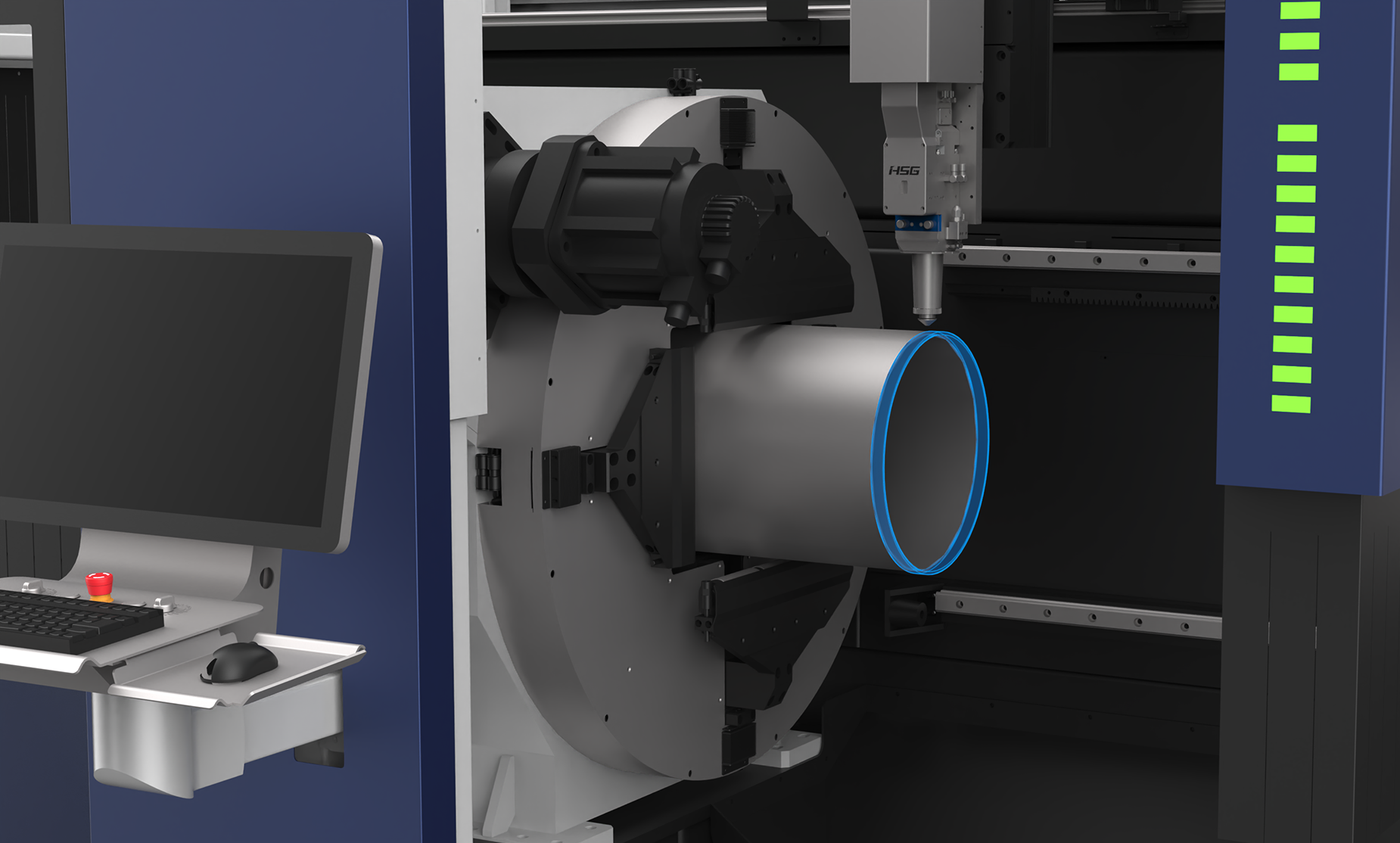

Zero Tailing for Material Savings

HSG’s advanced multi-chuck reversing technology eliminates tailing during heavy pipe cutting, optimizing material utilization, minimizing waste, and delivering significant cost savings.

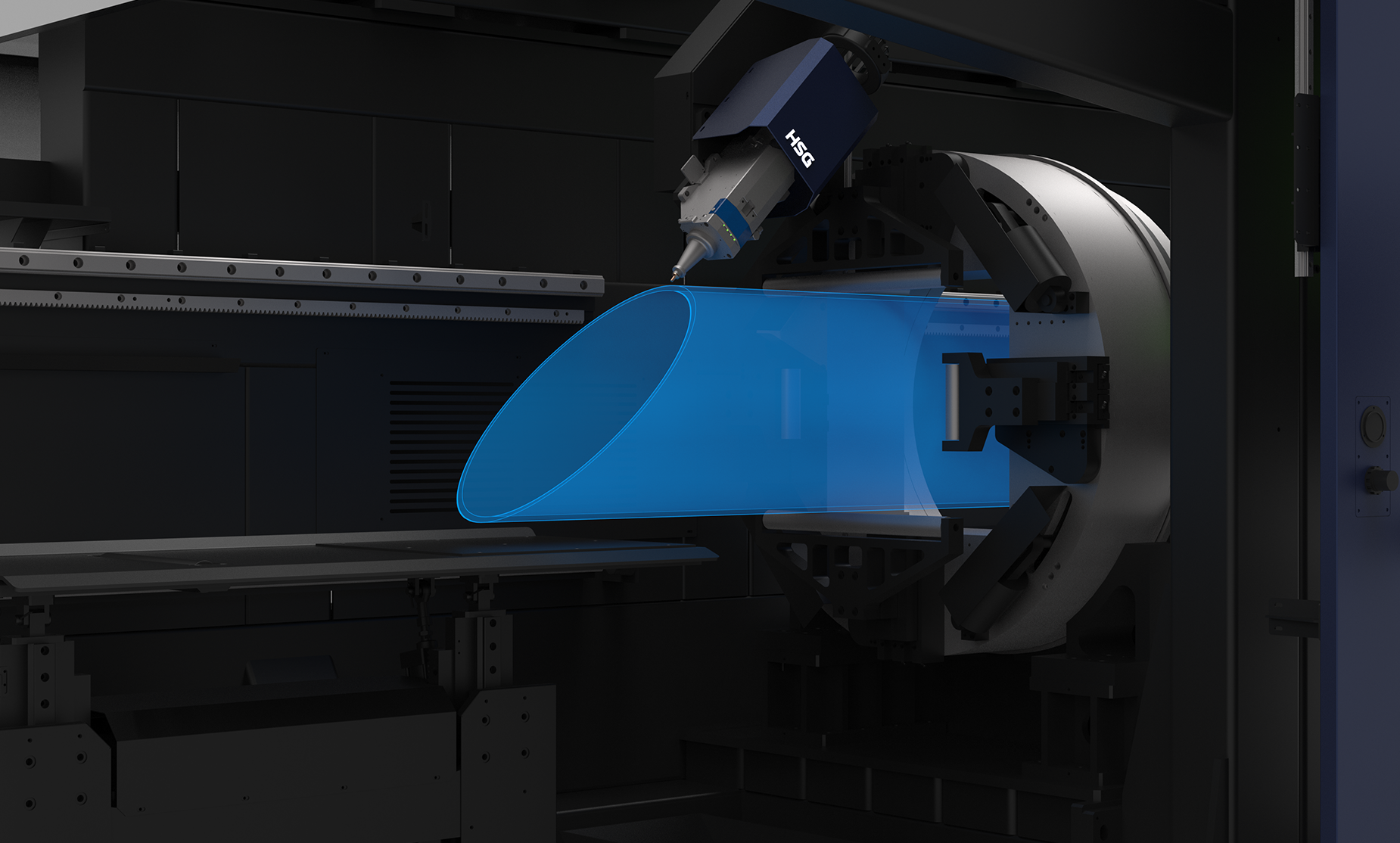

0-45° Bevel Cutting(Optional Features)

Offers flexible cutting within a ±45° bevel range, enabling precise joint preparation. This reduces the need for additional processing steps, saving both time and labor.

Heavy-Duty Tube Following Support System

This advanced system delivers comprehensive support during tube processing, ensuring enhanced precision and stability, particularly for heavy-duty tube applications.

ALL-AROUND CLAMPING SUPPORT FOR STABLE AND

PRECISE HEAVY TUBE CUTTING

HSG Unique Intelligent Chucks

HSG’s unique intelligent chucks allow seamless manufacturing across a wide clamping range of 20mm to 360mm, eliminating the need for retooling. These chucks feature excellent sealing to prevent cutting smoke and slag pollution, ensuring equipment stability and extending service life.

3+1 Twin-Chuck Clamping (Optional Feature)

The integrated C3 and C4 twin chucks combine support and clamping functions, providing enhanced stability and precision. This innovative design effortlessly handles the cutting of long and heavy tubes with ease.

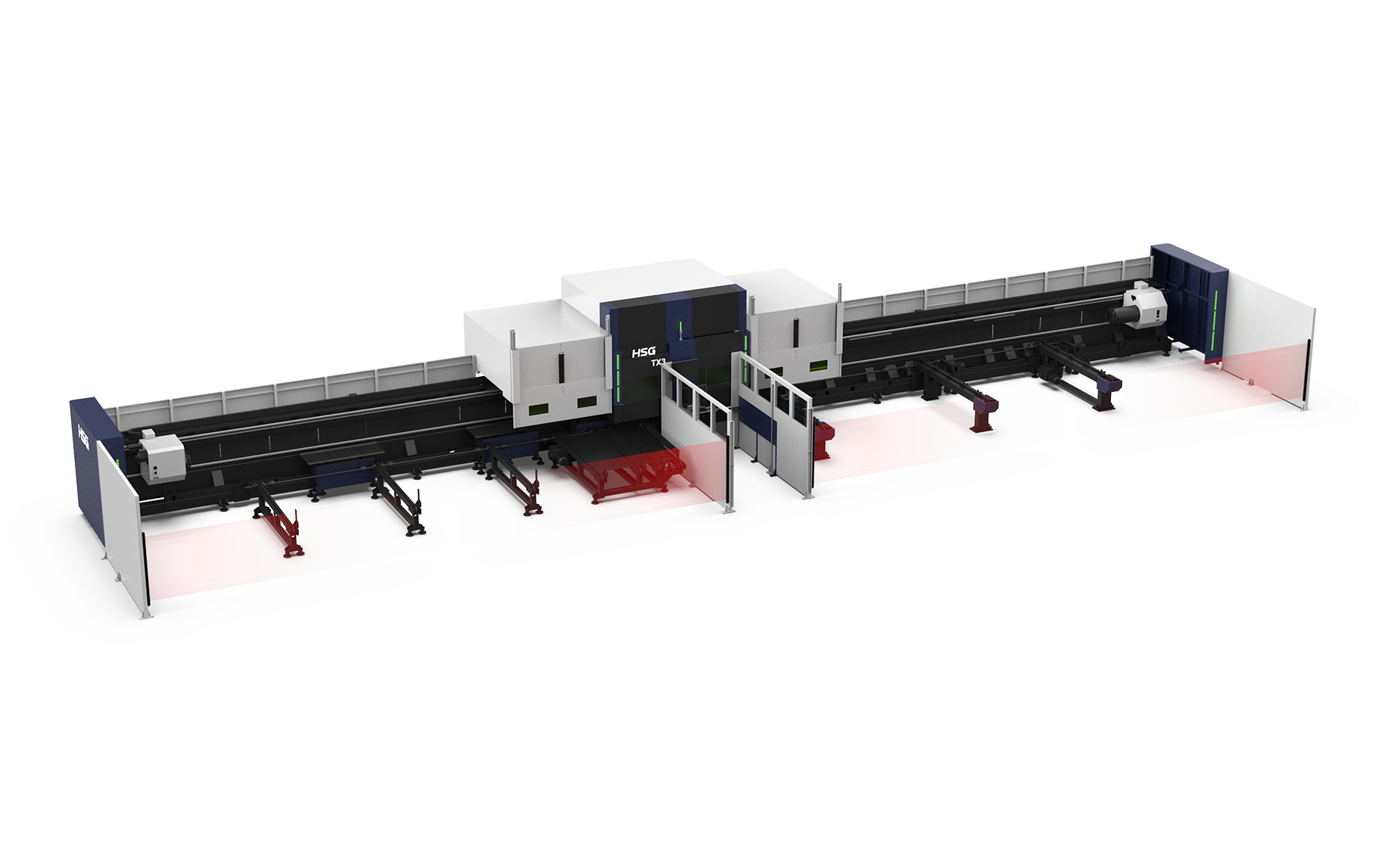

Streamline Your Workflow with Automatic Loading and Unloading

Efficient automatic loading and unloading of heavy pipes significantly reduces production preparation time. This feature enhances operational safety, saves labor, and lowers production costs, ensuring a more seamless and cost-effective process.

EFFICIENT AND INTUITIVE

LARGE TUBE CUTTING SOFTWARE

HSG X10000 Intelligent Bus Operating System

Leverage HSG’s advanced X10000 Intelligent Bus Operating System, featuring a comprehensive tube processing application assistant and a professional pipe cutting process database built on years of expertise. This system streamlines tube processing, making it more efficient and user-friendly. Its smart design simplifies laser tube cutting, optimizing your workflow and enhancing productivity.

TX Technical Specifications

For more details, feel free to reach out to us!

Model	TX3R	TX5R
Power	6-20kW	6-20kW
Cutting Capacity of Round Tube	Φ0.79-Φ14.17 inches	Φ1.97-Φ19.69 inches
Cutting Capacity of Square Tube	□0.79×0.79 - □14.17×14.17 inches	□1.97×1.97 - □13.78×13.78 inche
Weight of Single Tube	2,646 lbs	3,307 lbs
Chuck Speed	60 rpm	40 rpm
Max Linkage Speed	262 ft/min	197 ft/min
Maximum Acceleration	0.8G	0.3G
